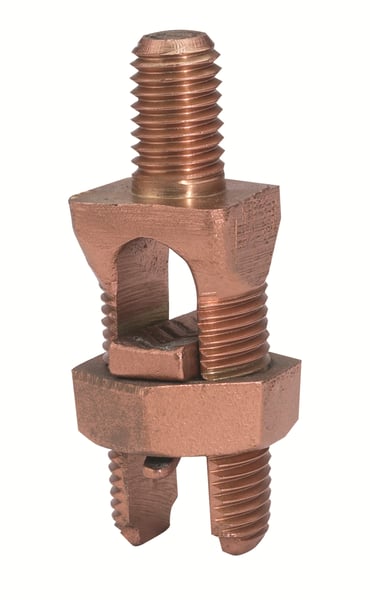

BURNDY® SERVIT® POST™ KC26 KC Series Mechanical Grounding Connector, 1 Conductors, 2 to 3/0 AWG Conductor, 1/2 in Stud, Unplated

Selected BURNDY® SERVIT® POST™ KC26 KC Series Mechanical Grounding Connector, 1 Conductors, 2 to 3/0 AWG Conductor, 1/2 in Stud, Unplated
BURNDY® SERVIT® POST™ KC26 KC Series Mechanical Grounding Connector, 1 Conductors, 2 to 3/0 AWG Conductor, 1/2 in Stud, Unplated

Documents

Short Description

All BURNDY® mechanical grounding connectors have been designed for easy installation and for outstanding durability. Only the finest high copper alloys are used in their manufacture, ensuring top performance under the most extreme environmental conditions. UL467 Listed for direct burial applications in earth or concrete.

Features

  • Also used to tap one or two cables from bus bar
  • 2 - 3/0 AWG solid, 2 - 2/0 AWG stranded conductor size
  • 1/2-13 thread size
  • Made of Leaded Bronze Alloy

Specification

Installation
One-Wrench
Material
Bronze
Outside Diameter
1 in
Series
KC
Application
Used to ground one or two copper cables to steel structures, fence posts, transformers, tap one or two cables from bus bar and direct burial
Standard & Approvals
UL467, CSA Certified, RoHS Compliant
Conductor Size
2 to 2/0 AWG
Dimensions
2.12 in L x 0.88 in W x 1.38 in H
Conductor Type
Copper
Connection Type
Cable to Flat
