BURNDY® SCRULUG™ KPA4C Mechanical Mechanical Bolted Lug and Terminal, 14 to 4 AWG Stranded Solid Copper Conductor, 1/4 in Stud, 1 Bolt Hole, Copper

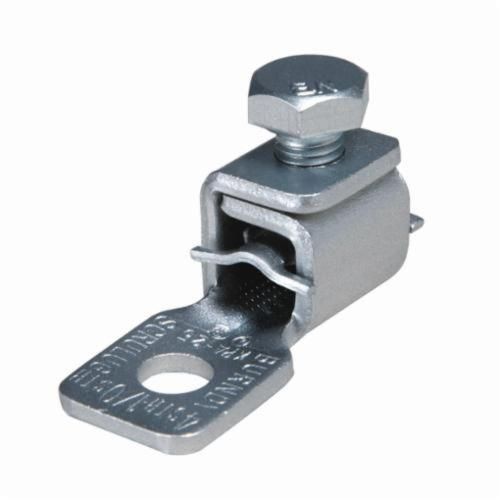

Selected KPA4CTPBURNDY® SCRULUG™ KPA4CTP KPA-TP 1-Piece Cable Terminal Lug, 14 to 4 AWG Copper Conductor, 1/4 in Stud, 1 Bolt Holes, Copper Alloy
KPA4CTPBURNDY® SCRULUG™ KPA4CTP KPA-TP 1-Piece Cable Terminal Lug, 14 to 4 AWG Copper Conductor, 1/4 in Stud, 1 Bolt Holes, Copper Alloy

Documents

Short Description

BURNDY® is The Grounding Superstore™. More than 80 years of technological innovation have made BURNDY® grounding connectors the most widely used and highly respected lines in the industry. Today BURNDY is a leading manufacturer and provider of commercial and industrial, utility and OEM solutions. Through The Grounding Superstore™, we offer four types of grounding products: Mechanical, Compression, Exothermic and Tooling & Accessories.

Features

  • High copper alloy tin plated terminal for joining a wide range of cable to equipment pads or terminal blocks
  • Especially good in light industrial applications
  • Tongue and body are a one piece design
  • Pressure bar equalizes pressure over the conductor and prevents the screw from cutting into the cable
  • 1 stud of 1/4 in

Specification

Material
Copper
Number of Bolt Holes
1
Minimum Order Qty
1
Order Interval
1
Video
https://www.youtube.com/watch?v=DzVhxrg0TQY
Catalog ID
BURKPA4C
Conductor Type
Solid/Stranded Copper
Finish
Tin Plated
Series
KPA
Stud Size
1/4 in
Tongue Style
Straight
Application
For Copper Cable, Joining a Wide Range of Cable to Equipment Pads or Terminal Blocks and Light Industrial Applications
Standard & Approvals
CSA Certified, RoHS Complaint, UL Listed
Dimensions
1.22 in L x 0.94 in H
Conductor Size
14 AWG Solid - 4 AWG Stranded
Tongue Size
0.59 in L x 0.5 in W x 0.06 in T
Specifications
Slotted robertson screw set, 45 in-lb installation torque
