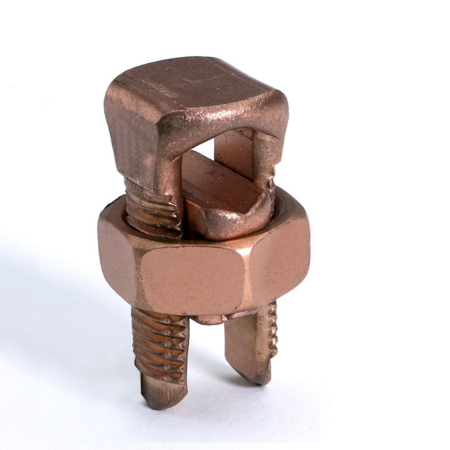

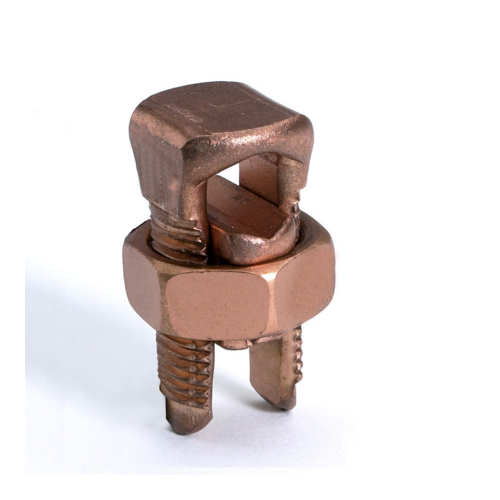

BURNDY® SERVIT® KS39 KS Series Compact Split Bolt Connector, (1) 5 AWG to 750 kcmil, 12 AWG to 750 kcmil Conductor, 3.29 in L, Copper Alloy
BURNDY® SERVIT® KS39 KS Series Compact Split Bolt Connector, (1) 5 AWG to 750 kcmil, 12 AWG to 750 kcmil Conductor, 3.29 in L, Copper Alloy
SKU: BURKS39
Manufacturer Part Number: KS39
UPC: 781810014752
Documents
Features
- Compact, high strength, high copper alloy SERVIT split-bolt has free-running threads and easy to grip wrench flats
- Highly resistant to season cracking and corrosion
- The servit provides maximum pressure and assures a secure connection on all combinations of run and tap conductors
- Conductor Type: Run - Commercial Stranded and Solid Copper, Stranded copperweld Tap - Commercial Stranded and Solid Copper, Stranded Copperweld
- 2.31 in Cross flats
- 4/0 AWG - 750 kcmil of copper tap range and copper stranded run (range), 19 No.5 of CopperWeld stranded tap size (range) and CopperWeld stranded run size (range)
- High Conductivity Copper Alloy
Specification
| Length | 3.29 in |
|---|---|
| Material | Copper |
| Number of Conductors | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Conductor Size | 4/0 AWG to 750 kcmil |
| Finish | Plain Copper Plated |
| Type | Compact |
| Width | 1.94 in |
| Standard & Approvals | UL Listed, CSA Certified, RoHS Compliant |
| Torque Rating | 1000 in-lb |
| Series | KS |
| Catalog ID | BURKS39 |
| Application | Direct Burial Cables |
