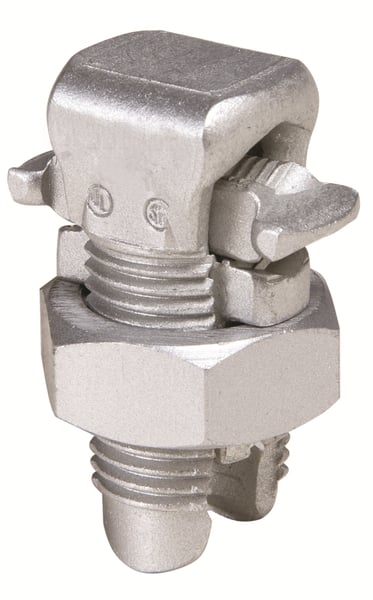

BURNDY® TRITAP™ SERVIT® KSA6 Split Bolt Connector, (1) 10 to 6 AWG Conductor, 1.28 in L, Aluminum
BURNDY® TRITAP™ SERVIT® KSA6 Split Bolt Connector, (1) 10 to 6 AWG Conductor, 1.28 in L, Aluminum
SKU: BURKSA6
Manufacturer Part Number: KSA6
UPC: 781810015353
Documents
Features
- No scratch brushing required
- No oxide inhibitor required
- Orients the conductor
- Provides maximum pressure and assures a secure connection of run and tap conductors
- Facilitates piercing the aluminum conductor surface oxides
- 90 deg C rated temperature
- Provides a low contact resistance
- Provides equal coefficient of expansion inhibits the reformation of oxides by producing a gas-tight seal
- Provides improved retention of minimum to maximum conductor combinations
- Conductor Type: Run: Commercial Stranded Aluminum, Commercial Stranded And Solid Copper, Tap: Commercial Stranded Aluminum, Commercial Stranded And Solid Copper
- 0.75 in cross flats
- 8 - 6 AWG of aluminum run size (range) and aluminum tap size (range), 10 - 6 AWG copper stranded run (range), of copper tap range and copper solid tap (range)
- 6 AWG Stranded - 10 AWG solid of min tap size with max run size, 6 - 6 AWG stranded of max tap size with max run size, 10 - 10 AWG solid min tap size with min run size
- High Strength Aluminum
Specification
| Material | Aluminum |
|---|---|
| Number of Conductors | 1 |
| Finish | Tin Plated |
| Conductor Size | 10 to 6 AWG |
| Length | 1.28 in |
| Standard & Approvals | UL 486B, CSA Certified, RoHS Compliant |
| Application | All Combinations of Aluminum to Aluminum, Aluminum to Copper and Copper to Copper, Tin Plated Aluminum Alloy |
| Width | 0.56 in |
| Torque Rating | 165 in-lb |
| Series | KSA |
