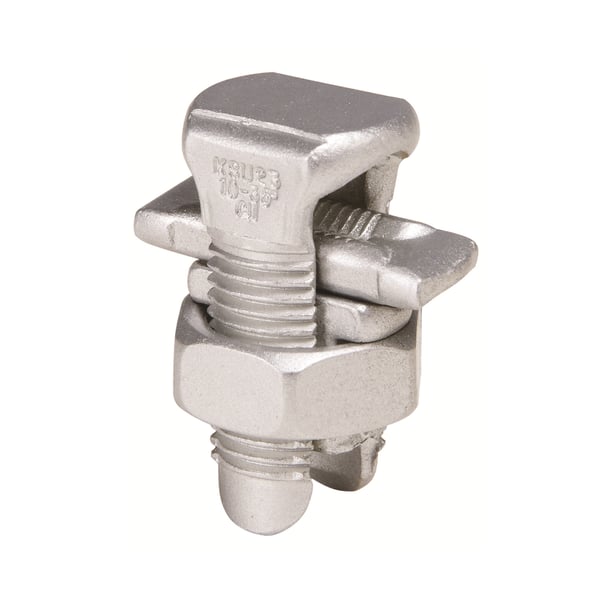

BURNDY® SERVIT® KSU25 Universal Split Bolt Connector, (1) 3 to 1/0 AWG, 10 AWG to 3/8 in Conductor, 1.77 in L, Copper Alloy
BURNDY® SERVIT® KSU25 Universal Split Bolt Connector, (1) 3 to 1/0 AWG, 10 AWG to 3/8 in Conductor, 1.77 in L, Copper Alloy
SKU: BURKSU25
Manufacturer Part Number: KSU25
UPC: 781810036259
Documents
Features
- Tin-plated, high strength copper alloy SERVIT with spacer
- Spacer separates dissimilar conductors and provides long contact length that prevents high pressure point contacts between run and tap conductors
- Use of penetrox joint compound recommended with aluminum and ACSR
- Conductor Type: Run - ACSR, 5005, AAAC, Commercial Stranded Aluminum, Commercial Stranded and Solid Copper, Tap - ACSR, 5005, AAAC, Commercial Stranded Aluminum, Commercial Stranded and Solid Copper, Steel (Nominal Diameter)
- 0.93 in cross flats
- 10 - 1/0 AWG of copper tap range, 2 AWG - 1/0 copper stranded run (range), 22 AWG of copper solid tap (range) and copper solid run size (range)
- High Conductivity Copper Alloy
Specification
| Material | Copper |
|---|---|
| Number of Conductors | 1 |
| Width | 0.7 in |
| Length | 1.77 in |
| Finish | Electro Tin Plated |
| Conductor Size | 10 to 1/0 AWG |
| Standard & Approvals | UL 486A, CSA Certified, RoHS Compliant |
| Application | All Combinations of Copper, Aluminum, ACSR, AAAC, 5005 and Steel |
| Type | Universal |
| Torque Rating | 385 in-lb |
| Series | KSU |
