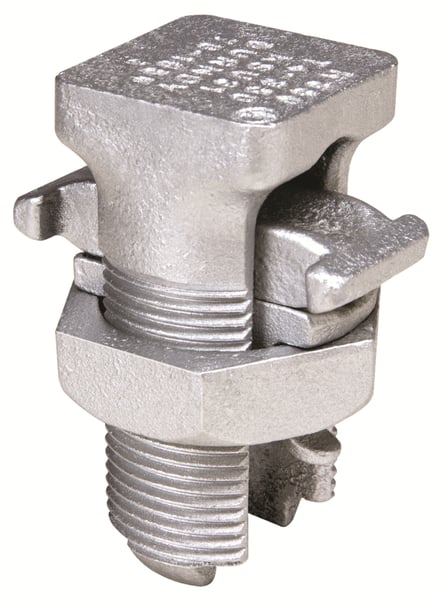

BURNDY® SERVIT® KSU29 Universal Split Bolt Connector, (1) 1 AWG to 250 kcmil, 8 AWG to 250 kcmil Conductor, 2-1/2 in L, Copper Alloy

BURNDY® SERVIT® KSU29 Universal Split Bolt Connector, (1) 1 AWG to 250 kcmil, 8 AWG to 250 kcmil Conductor, 2-1/2 in L, Copper Alloy
SKU: BURKSU29
Manufacturer Part Number: KSU29
UPC: 781810036853
Documents
Features
- Tin-plated, high strength copper alloy SERVIT with spacer
- Spacer separates dissimilar conductors and provides long contact length that prevents high pressure point contacts between run and tap conductors
- Use of penetrox joint compound recommended with aluminum and ACSR
- Conductor Type: Run - ACSR, 5005, AAAC, Commercial Stranded Aluminum, Commercial Stranded and Solid Copper, Tap - ACSR, 5005, AAAC, Commercial Stranded Aluminum, Commercial Stranded and Solid Copper, Steel (Nominal Diameter)
- 1.38 in cross flats
- 8 AWG - 250 kcmil of copper tap range, 1 AWG - 250 kcmil copper stranded run (range)
- High Conductivity Copper Alloy
Specification
| Length | 2-1/2 in |
|---|---|
| Material | Copper |
| Number of Conductors | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Finish | Electro Tin Plated |
| Series | KSU |
| Type | Universal |
| Width | 1.14 in |
| Application | All Combinations of Copper, Aluminum, ACSR, AAAC, 5005 and Steel |
| Standard & Approvals | UL 486A, CSA Certified, RoHS Compliant |
| Torque Rating | 650 in-lb |
| Conductor Size | 8 AWG to 250 kcmil |
| Catalog ID | BURKSU29 |
