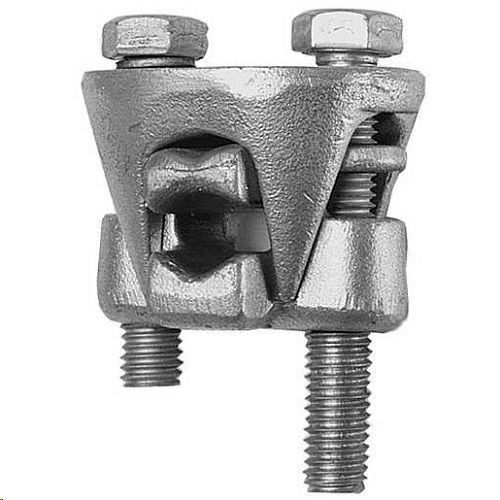

BURNDY® OKLIP™ KVS34A Type KVS-A Tap Connector, 336.4 to 500 kcmil ACSR/AAAC/Aluminum/Stranded Copper Conductor, 1/2 in Bolt, Aluminum Alloy
BURNDY® OKLIP™ KVS34A Type KVS-A Tap Connector, 336.4 to 500 kcmil ACSR/AAAC/Aluminum/Stranded Copper Conductor, 1/2 in Bolt, Aluminum Alloy
SKU: BURKVS34-A
Manufacturer Part Number: KVS34A
UPC: 781810072509
Features
- High conductivity
- Non-copper bearing aluminum alloy connector with thick spacer and aluminum hardware
- Recommended for heavy duty dissimilar metal applications
- Spacer separates conductors and provides long contact length
- Belted entrances prevent chafing and permit easier assembly of conductors
- Longer, peened bolt
- Permits swivel action for easier installation
- Neoprene ring prevents loss of shorter bolt
- PENETROX™ joint compound recommended with aluminum and ACSR
- 0.728 in Dia minimum run armor rod
- 0.216 to 0.814 in Dia maximum run and tap
- ACSR, 5005, AAAC, commercial aluminum stranded, commercial stranded copper run
Specification
| Material | Aluminum Alloy |
|---|---|
| Standard & Approvals | PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Finish | Tin Plated |
| Conductor Type | ACSR/AAAC/Aluminum/Stranded Copper |
| Bolt Size | 1/2 in |
| Dimensions | 2-5/16 in L x 2-5/8 in W x 3-9/16 in H |
| Conductor Size | 336.4 to 500 kcmil |
| Type | Type KVS-A |
| Tap Size | 5 AWG to 500 kcmil |
| Specifications | 3-Piece, 300 in-lb Installation Torque |
