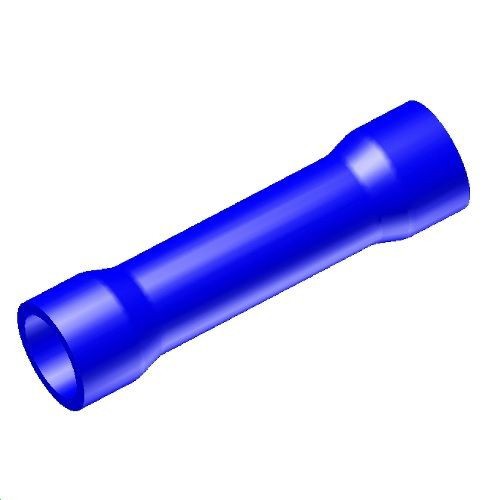

BURNDY® VINYLINK SP14 Splice Connector, 16 to 14 AWG Conductor, 1 in L, Seamless Barrel, Copper, Blue
BURNDY® VINYLINK SP14 Splice Connector, 16 to 14 AWG Conductor, 1 in L, Seamless Barrel, Copper, Blue
SKU: BURSP14
Manufacturer Part Number: SP14
UPC: 781810712016
Features
- Provides maximum conductivity and tensile strength, in a high quality design with no seams to split
- Funnel entry provides easy wire insertion
- Electro-tin plated provides durable long-lasting resistance to corrosion
- Expanded insulation support
- Economical means of providing high dielectric values and cable insulation support
Specification
| Length | 1 in |
|---|---|
| Material | Copper Contact/PVC Insulation |
| Minimum Order Qty | 50 |
| Order Interval | 50 |
| Barrel Size | 0.18 in ID x 0.25 in |
| Catalog ID | BURSP14 |
| Color | Blue |
| Conductor Size | 16 to 14 AWG |
| Finish | Electro-Plated Tin |
| Series | VINYLINK™ |
| Temperature Rating | 105 deg C |
| Type | Type SP |
| Voltage Rating | 600 VAC |
| Standard & Approvals | CSA Certified, UL Listed, RoHS Compliant |
