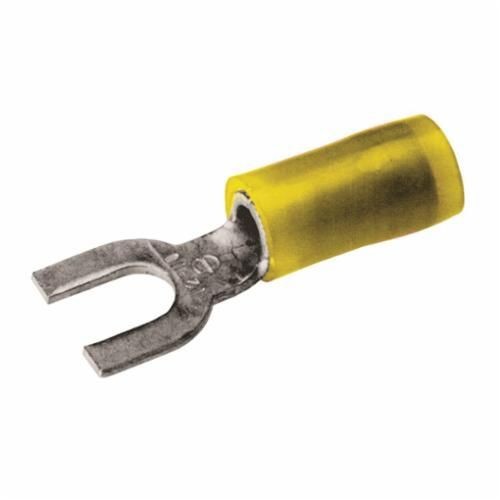

BURNDY® Insulug™ TN108F TN-F Smooth Fork Terminal, 12 to 10 AWG Conductor, 1.01 in L, Brazed Seam/Funnel Entry Barrel, Copper, Yellow

Selected TN10-8FBURNDY® Insulug™ TN108F TN-F Smooth Fork Terminal, 12 to 10 AWG Conductor, 1.01 in L, Brazed Seam/Funnel Entry Barrel, Copper, Yellow
TN10-8FBURNDY® Insulug™ TN108F TN-F Smooth Fork Terminal, 12 to 10 AWG Conductor, 1.01 in L, Brazed Seam/Funnel Entry Barrel, Copper, Yellow

Documents

Short Description

BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.

Features

  • Type TN-F, nylon insulated fork tongue terminal has the same high quality as the TN
  • It is designed to meet the heavy duty requirements of industrial and utility applications
  • Used on both power and control circuits for wire sizes NO 26 AWG through NO 10 AWG
  • TN-F provides high dielectric strength and stability in oily conditions
  • Fork tongue provides faster and easier installation by permitting insertion under the screw head without completely removing it
  • Funnel entry
  • Used for Y10D, Y10-22 non-ratchet hand crimper plier, MRE1022NV, MR8-83, MR18 ratchet crimper
  • Nylon insulation
  • For installation tool: non-ratchet: Y10D, Y10-22 tool, ratchet: MR8-83, MR18 tool
  • 12 - 10 AWG stranded conductor size
  • 0.209 in Dia Maximum Insulation, 11/32 in L Strip, 0.84 in Hole Centre to Barrel End, 0.26 in Hole Centre to Barrel
  • Electro Tin Plated Copper

Specification

Length
1.01 in
Material
Copper
Overall Length
1.01 in
Series
TN
Stud Size
NO 6-8
Temperature Rating
105 deg C
Voltage Rating
300 VAC
Conductor Size
12 to 10 AWG
Barrel Style
Brazed Seam
Color Code
Yellow
Conductor Type
Copper
Standard & Approvals
UL 486, CSA Certified and RoHS Compliant
Application
For Both Power and Control Circuits, Wire Sizes 26 AWG Through 10 AWG
Tongue Style
Fork
Tongue Size
0.31 in W
