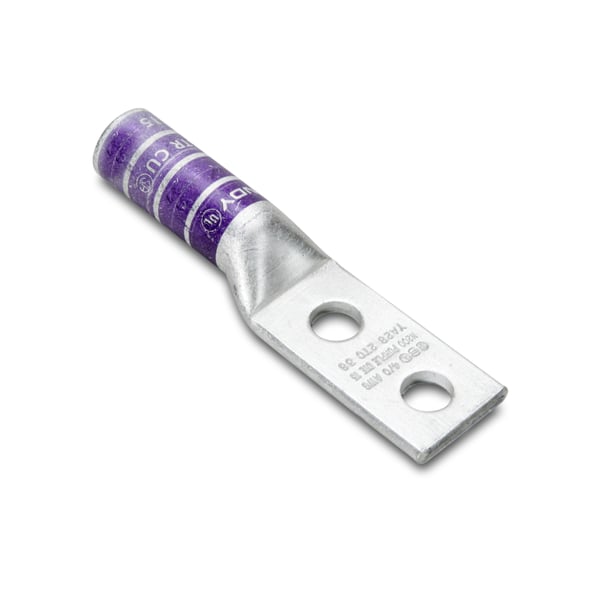

BURNDY® HYLUG™ YA1C2N YA-2N 2-Hole Compression Lug, 1 AWG Stranded Copper Conductor, Die Code: 11, 1/2 in Stud, Tin Plated Copper

Selected BURNDY® HYLUG™ YA1C2N YA-2N 2-Hole Compression Lug, 1 AWG Stranded Copper Conductor, Die Code: 11, 1/2 in Stud, Tin Plated Copper
BURNDY® HYLUG™ YA1C2N YA-2N 2-Hole Compression Lug, 1 AWG Stranded Copper Conductor, Die Code: 11, 1/2 in Stud, Tin Plated Copper

Documents

Short Description

BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.

Features

  • For mechanical: MD6, OUR840, MD7-34R tool, (2) W1CVT, W1CRT-1, X1CRT-1 die, hydraulic: BCT500HS, Y500CTHS tool, (2) W1CVT, W1CRT-1, X1CRT-1 die, Y35, Y39, Y750, PAT750 tool, (2) U1CRT-1, U4CABT die, Y46 tool, (2) U1CRT-1, U4CABT die with PUADP-1 adapter, dieless tools (number of crimps): (1) Y644HS tool, (2) Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11, MRC840 tool, (4) Y1MR tool installation tool
  • 1 AWG stranded conductor size
  • 1-7/16 in L Strip, 1-3/4 in Stud Hole Spacing
  • Electro Tin Plated Copper

Specification

Material
Copper
Overall Length
4.82 in
Series
YA-2N
Stud Size
1/2 in
Temperature Rating
90 deg C
Tongue Size
0.83 in W x 0.12 in THK
Tongue Style
Straight/Standard
Type
2-Hole
Voltage Rating
600 VAC to 35 kV
Application
For code conductor
Standard & Approvals
UL467, CSA Certified and RoHS Compliant
Conductor Size
1 AWG
Barrel Size
1.38 in L
Barrel Style
Chamfered/Long
Color Code
Green
Conductor Type
Copper
Die Code
11
