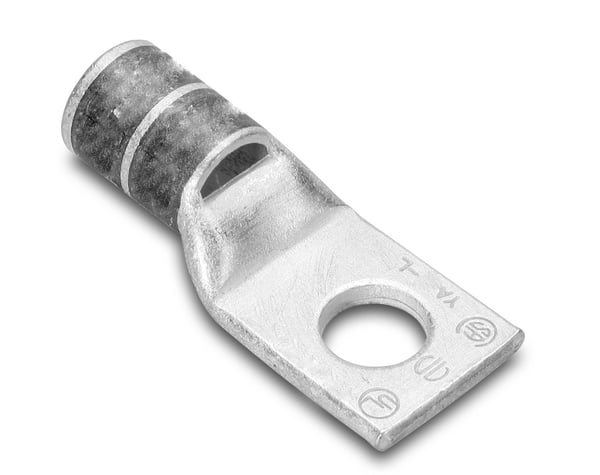

BURNDY® HYLUG™ YA1CL4BOX YA-L 1-Hole Compression Lug With Inspection Window, 1 AWG Stranded Copper Conductor, Die Code: 11, 3/8 in Stud, Copper

Selected Data-Spec SheetBURNDY® HYLUG™ YA1CL4BOX YA-L 1-Hole Compression Lug With Inspection Window, 1 AWG Stranded Copper Conductor, Die Code: 11, 3/8 in Stud, Copper
Data-Spec SheetBURNDY® HYLUG™ YA1CL4BOX YA-L 1-Hole Compression Lug With Inspection Window, 1 AWG Stranded Copper Conductor, Die Code: 11, 3/8 in Stud, Copper

Documents

Short Description

BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.

Features

  • For mechanical: (1) W1CVT, (1) W1CRT-1, (1) X1CRT-1, (1) BCT500HS, Y500CTHS hydraulic: (1) W1CVT, (1) W1CRT-1, (1) X1CRT-1, (4) W29VT, Y35, Y39, Y750, Y46, PAT750 hydraulic: (1) U1CRT-1, (1) U4CABT, dieless: (2) Y1MRTC, (1) MY29-3, (1) MY29-11, (1) MRC840, (1, Y644HS, (1) Y81KFT, (1) Y81KFTMBH, (1) PAT81KFT-18V installation tool
  • 1 AWG stranded conductor size
  • 15/16 in L Strip

Specification

Material
Copper
Overall Length
2.06 in
Series
YA-L
Stud Size
3/8 in
Temperature Rating
90 deg C
Tongue Size
0.68 in W x 0.1 in THK
Tongue Style
Straight/Standard
Type
1-Hole
Voltage Rating
600 VAC to 35 kV
Application
For code conductor
Standard & Approvals
UL467, CSA Certified and RoHS Compliant
Conductor Size
1 AWG
Barrel Size
0.88 in L
Barrel Style
Chamfered/Short/Standard
Color Code
Green
Conductor Type
Copper
Die Code
11
