BURNDY® HYLUG™ YA27LB YA-LB 1-Hole Compression Lug With Inspection Window, 3/0 AWG Solid/Stranded Copper Conductor, Die Code: 14, 1/2 in Stud, Electro Plated Tin Copper

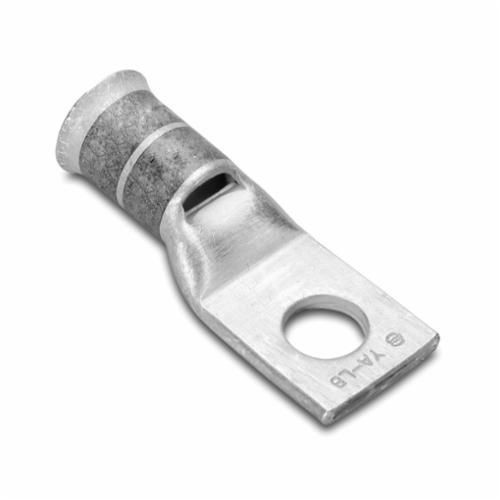

Selected YA31LBBURNDY® HYLUG™ YA31LB YA-LB 1-Hole Compression Lug With Inspection Window, 250 kcmil Copper Conductor, Die Code: 1025, 1/2 in Stud, Electro-Tin Plated Copper
YA31LBBURNDY® HYLUG™ YA31LB YA-LB 1-Hole Compression Lug With Inspection Window, 250 kcmil Copper Conductor, Die Code: 1025, 1/2 in Stud, Electro-Tin Plated Copper

Documents

Short Description

BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.

Features

  • For die nest catalog number, die indenter catalog number: U27D-1 die nest, Y34PR2 die indenter installation tool
  • Welding cable, class M (no 34 STR), locomotive cable, battery cable, class K (no 30 STR), dieless tools (number of crimps): (1) Y81KFT, Y81KFTMBH, PAT81KFT-18V tool installation tool
  • 2/0 AWG flex (Class G, H, I, M) size, 2/0 (375/NO 24) DLO size, 150 (61) navy cable size, 3/0 AWG copper stranded/solid conductor size
  • Copper/Flex conductor
  • 3/0 AWG stranded/solid conductor size
  • 1-1/16 in L Strip
  • Electro Tin Plated Copper

Specification

Material
Copper
Stud Size
1/2 in
Temperature Rating
90 deg C
Tongue Size
0.91 in W x 0.12 in THK
Tongue Style
Straight/Standard
Type
1-Hole
Voltage Rating
600 VAC to 35 kV
Standard & Approvals
UL Listed, RoHS Compliant
Conductor Size
3/0 AWG
Application
For flex conductor
Barrel Size
0.99 in L
Barrel Style
Belled End/Short/Standard
Color Code
Orange
Conductor Type
Copper
Overall Length
2.61 in
Die Code
14
Series
YA-LB
