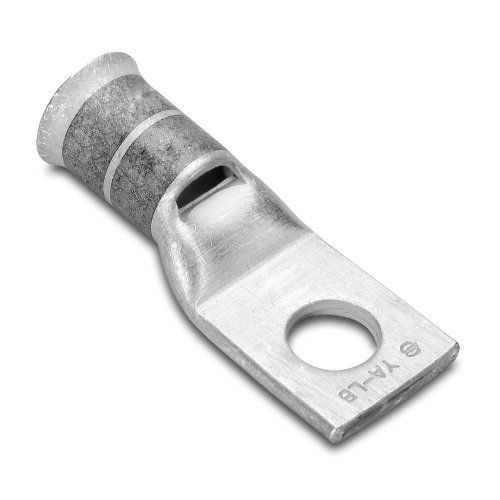

BURNDY® HYLUG™ YA28 YA Series 1-Hole Uninsulated Compression Lug, 4/0 AWG Stranded Copper Conductor, Die Code: 15, 1/2 in Stud, Tin Plated Copper

Selected BURNDY® HYLUG™ YA28 YA Series 1-Hole Uninsulated Compression Lug, 4/0 AWG Stranded Copper Conductor, Die Code: 15, 1/2 in Stud, Tin Plated Copper
BURNDY® HYLUG™ YA28 YA Series 1-Hole Uninsulated Compression Lug, 4/0 AWG Stranded Copper Conductor, Die Code: 15, 1/2 in Stud, Tin Plated Copper

Documents

Short Description

BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.

Features

  • For mechanical: MD6, OUR840, MD7-34R tool, (4) W28VT, W28RT die, (6) X28RT die, hydraulic: BCT500HS, Y500CTHS tool, (4) W28VT, W28RT die, (6) X28RT die, Y35, Y39, Y750, PAT750 tool, (2) U28RT die, Y46 tool, (2) U28RT die with PUADP-1 adapter, dieless tools (number of crimps): (1) Y644HS tool, (2) Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11 tool, (4) MRC840 tool installation tool
  • 4/0 AWG stranded conductor size
  • 1-9/16 in L Strip, 0.53 Hole Center to End
  • Electro Tin Plated Copper

Specification

Material
Copper
Overall Length
3.23 in
Minimum Order Qty
1
Order Interval
1
Barrel Size
1.62 in L
Barrel Style
Chamfered/Long
Catalog ID
BURYA28
Color Code
Purple
Conductor Size
4/0 AWG
Conductor Type
Copper
Die Code
15
Series
YA
Stud Size
1/2 in
Temperature Rating
90 deg C
Tongue Size
1.02 in W x 0.14 in THK
Tongue Style
Straight/Standard
Type
1-Hole Non-Insulated
Voltage Rating
600 VAC to 35 kV
Standard & Approvals
UL468A-468B, CSA Certified and RoHS Compliant
Application
For code conductor
