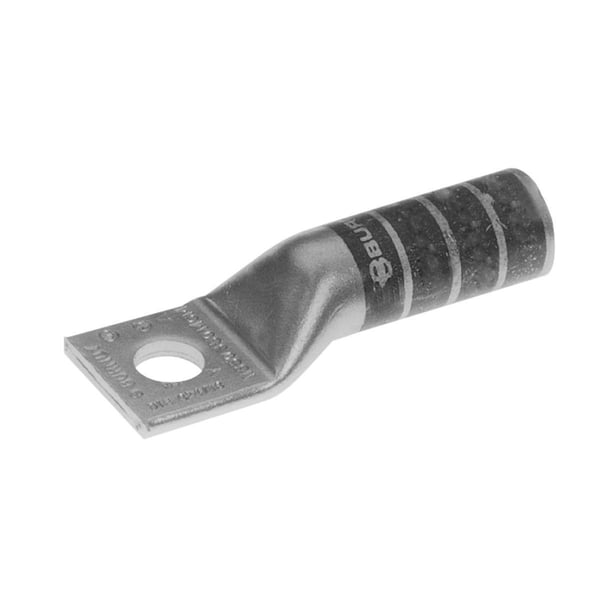

BURNDY® HYLUG™ YA28N YA-TC 1-Hole Compression Lug, 4/0 AWG Stranded Copper Conductor, 1/2 in Stud, Tin Plated Copper
BURNDY® HYLUG™ YA28N YA-TC 1-Hole Compression Lug, 4/0 AWG Stranded Copper Conductor, 1/2 in Stud, Tin Plated Copper
SKU: BURYA28N
Manufacturer Part Number: YA28N
UPC: 781810282229
Documents
Features
- Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
- Long barrel length allows for an increased number of crimps increasing the mechanical strength of the connection
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color
Specification
| Stud Size | 1/2 in |
|---|---|
| Barrel Type | Beveled/Long |
| Color | Purple |
| Series | YA-TC |
| Specifications | 1-11/16 in L Wire Strip |
| Voltage Rating | 600 VAC to 35 kV |
| Material | Tin Plated Copper |
| Tongue Type | Straight |
| Barrel Size | 1.62 in L |
| Conductor Size | 4/0 AWG |
| Type | 1-Hole |
| Overall Length | 3.41 in |
| Conductor Type | Stranded Copper |
| Tongue Size | 1.02 in W x 0.14 in THK |
