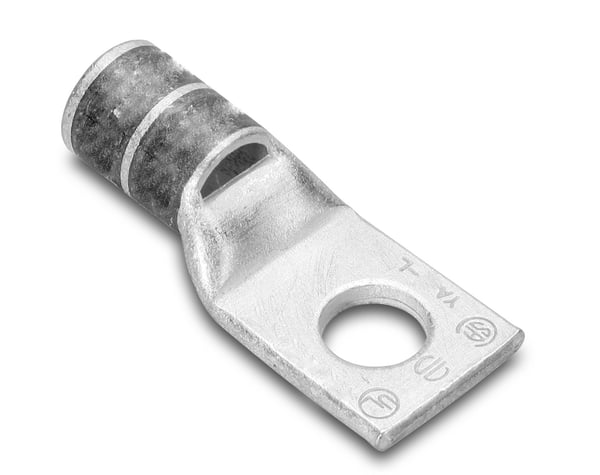

BURNDY® HYLUG™ YA29LBOX YA-L 1-Hole Compression Lug With Inspection Window, 250 kcmil Stranded Copper Conductor, Die Code: 16, 1/2 in Stud, Tin Plated Copper

Selected BURNDY® HYLUG™ YA29LBOX YA-L 1-Hole Compression Lug With Inspection Window, 250 kcmil Stranded Copper Conductor, Die Code: 16, 1/2 in Stud, Tin Plated Copper
BURNDY® HYLUG™ YA29LBOX YA-L 1-Hole Compression Lug With Inspection Window, 250 kcmil Stranded Copper Conductor, Die Code: 16, 1/2 in Stud, Tin Plated Copper

Documents

Short Description

BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.

Features

  • For mechanical: MD6, OUR840, MD7-34R tool, (2) W29VT die, (4) X29RT die, hydraulic: BCT500HS, Y500CTHS tool, (2) W29VT, W29RT die, (4) X29RT die, Y35, Y39, Y750, PAT750 tool, (1) U29RT die, Y46 tool, (1) U29RT die with PUADP-1 adapter, dieless tools (number of crimps): (1) Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11 tool installation tool
  • 250 kcmil stranded conductor size
  • 1-1/8 in L Strip
  • Electro Tin Plated Copper

Specification

Material
Copper
Overall Length
2.67 in
Series
YA-L
Stud Size
1/2 in
Temperature Rating
90 deg C
Tongue Style
Straight/Standard
Type
1-Hole
Voltage Rating
600 VAC to 35 kV
Application
For code conductor
Standard & Approvals
UL Listed, CSA Certified and RoHS Compliant
Conductor Size
250 kcmil
Barrel Style
Chamfered/Short/Skived/Standard
Color Code
Yellow
Conductor Type
Copper
Die Code
16
Tongue Size
1.11 in W x 0.16 in THK
Barrel Size
1.06 in L
