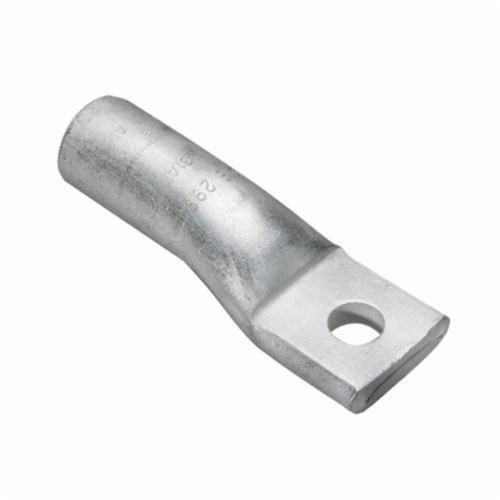

BURNDY® HYLUG™ YA2CA3 YA-A 1-Hole Dual Rated Uninsulated Compression Lug, 2 AWG Aluminum/Stranded Copper Conductor, Die Code: 348, 3/8 in Stud, Electro Plated Tin Aluminum

Selected YA6CA3BURNDY® HYLUG™ YA31A1 YA-A 1-Hole Dual Rated Uninsulated Compression Lug, 350 kcmil Aluminum/Copper Conductor, Die Code: 299, 1/2 in Stud, Electro Plated Tin Aluminum
YA6CA3BURNDY® HYLUG™ YA31A1 YA-A 1-Hole Dual Rated Uninsulated Compression Lug, 350 kcmil Aluminum/Copper Conductor, Die Code: 299, 1/2 in Stud, Electro Plated Tin Aluminum

Documents

Short Description

BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance. Aluminum compression connectors are manufactured from high conductivity, high purity wrought aluminum. They are designed with sufficient mass and are electro-tin plated to minimize corrosion due to galvanic action between dissimilar metals. The connector barrels are pre-filled with PENETROX®, BURNDY's oxide inhibiting compound.

Features

  • For die set catalog number, and (number of crimps): Y35, Y39, Y750 tool, (1) U2CABT die, Y46 tool, (1) U2CABT die with PUADP-1 adapter, die index: 348, dieless tools (number of crimps): Mechanical: (1) MY29-3, MRC840AL tool, hydraulic hypress: (1) Y644HS tool, (2) Y81KFT, Y81KFTMBH, PAT81KFT-18V tool, installation tool
  • Manufactured from high conductivity, wrought aluminum with heavy duty wall thickness
  • Provides maximum conductivity, low resistance and ductility for an excellent combination of electrical and crimp forming properties
  • Provides durable long lasting corrosion resistance
  • Internally beveled barrel
  • Provides easy cable insertion
  • Provides a quality electrical dual connection
  • Connector is clearly marked with wire size, die index, color-code and the proper number and location of crimps
  • Provides easy identification and tooling recommendation for a proper compression which forms a homogeneous mass resulting in an excellent electrical connection
  • Factory prefilled with PENETROX® oxide inhibiting compound
  • Oxide inhibiting compound contains homogeneously suspended metallic particles to penetrate the wires oxides, establish electrical continuity and forms an airtight connection
  • Color-coded end caps inserted in barrel end
  • Prevents foreign materials from entering and contaminating the connector prior to usage plus identifies the proper color-coded die for a reliable connection
  • Type YA-A aluminum tin plated compression HYLUG™ terminals are dual-rated and designed for use on both aluminum and copper conductors from #12 solid through 2000 kcmil
  • They are designed for heavy duty applications to 35 kV
  • YA-A terminals are prefilled with PENETROX®, and assembled with color-coded end caps
  • 2 AWG stranded conductor size
  • 1-1/8 in L Strip, 0.44 in Hole Center to End, 0.5 in Hole Center to Barrel

Specification

Material
Aluminum
Minimum Order Qty
1
Order Interval
1
Conductor Size
2 AWG
Conductor Type
Aluminum/Copper
Stud Size
3/8 in
Temperature Rating
90 deg C
Application
For use with copper or aluminum conductors
Standard & Approvals
UL468A-468B, CSA Certified and RoHS Compliant
Type
1-Hole Non-Insulated
Tongue Style
Straight/Standard
Tongue Size
1.03 in L x 0.88 in W x 0.16 in THK
Series
YA-A
Die Code
348
Color Code
Pink
Catalog ID
BURYA2CA3
Barrel Style
Long
Barrel Size
1.12 in L
Overall Length
2.56 in
Voltage Rating
600 VAC to 35 kV
