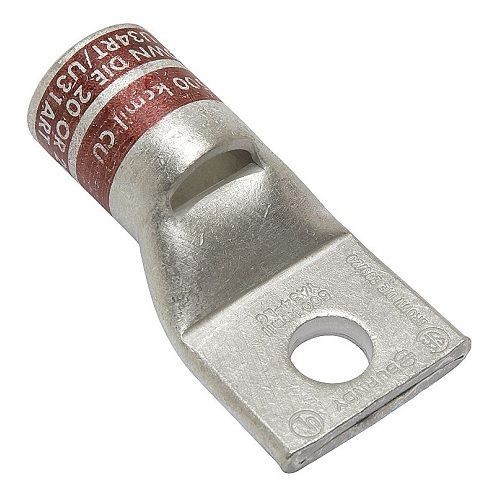

BURNDY® HYLUG™ YA2CLNT10 YA-L-NT 1-Hole Compression Lug With Inspection Window, 2 AWG Stranded Copper Conductor, Die Code: 10, #10 Stud, Tin Plated Copper

Selected BURNDY® HYLUG™ YA2CLNT10 YA-L-NT 1-Hole Compression Lug With Inspection Window, 2 AWG Stranded Copper Conductor, Die Code: 10, #10 Stud, Tin Plated Copper
BURNDY® HYLUG™ YA2CLNT10 YA-L-NT 1-Hole Compression Lug With Inspection Window, 2 AWG Stranded Copper Conductor, Die Code: 10, #10 Stud, Tin Plated Copper

Features

  • 1 in stud hole spacing
  • 2 AWG stranded copper cable

Specification

Material
Tin Electro Plated Copper
Mounting Hole Size
0.2 in
Overall Length
1.8 in
Specifications
15/16 in Strip
Stud Size
#10
Temperature Rating
90 deg C
Tongue Size
0.48 in W x 0.11 in THK
Tongue Style
Standard/Straight
Type
1-Hole
Voltage Rating
600 VAC to 35 kV
Standard & Approvals
RoHS Compliant
Conductor Size
2 AWG
Barrel Size
0.88 in
Barrel Style
Standard Chamfered
Color
Brown
Conductor Type
Stranded Copper
Die Code
10
