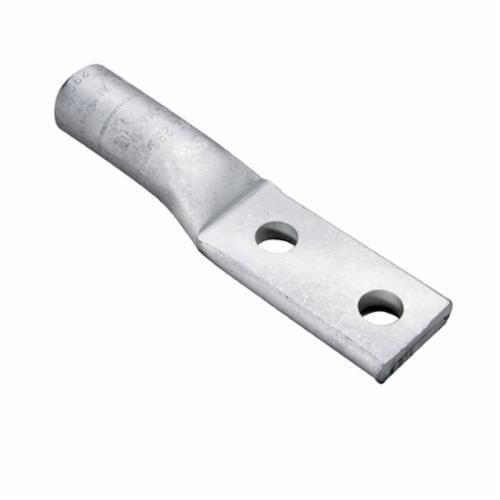

BURNDY® HYLUG™ YA36A3 2-Hole Uninsulated Compression Lug, 600 kcmil Copper/Stranded Aluminum Conductor, Die Code: 473, 1/2 in Stud, Aluminum

Selected YA39A5BURNDY® HYLUG™ YA28A5 YA-A 2-Hole Compression Lug, 4/0 AWG Aluminum/Copper Conductor, Die Code: 298, 1/2 in Stud, Aluminum
YA39A5BURNDY® HYLUG™ YA28A5 YA-A 2-Hole Compression Lug, 4/0 AWG Aluminum/Copper Conductor, Die Code: 298, 1/2 in Stud, Aluminum

Documents

Short Description

BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance. Aluminum compression connectors are manufactured from high conductivity, high purity wrought aluminum. They are designed with sufficient mass and are electro-tin plated to minimize corrosion due to galvanic action between dissimilar metals. The connector barrels are pre-filled with PENETROX®, BURNDY's oxide inhibiting compound.

Features

  • Manufactured from high conductivity, wrought aluminum with heavy duty wall thickness
  • Electro tin plated, provides durable long lasting corrosion resistance
  • Internally beveled barrel, provides easy cable insertion
  • Provides a quality electrical dual connection
  • Connector is clearly marked with wire size, die index, color-code and the proper number and location of crimps
  • Type YA-A aluminum tin plated compression HYLUG™ terminals are dual-rated and designed for use on both aluminum and copper conductors from NO 12 sol
  • Pads inhibit connector rotation and increase area contact
  • Designed for heavy duty applications to 35KV
  • YA-A terminals are prefilled with PENETROX® and assembled with color-coded end caps
  • The aluminum HYLUG™ terminals are designed for a permanent trouble-free electrical termination
  • Oxide inhibiting compound contains homogeneously suspended metallic particles to penetrate the wires oxides, establish electrical continuity and forms an airtight connection
  • Color-coded end caps inserted in barrel end
  • Prevents foreign materials from entering and contaminating the connector prior to usage plus identifies the proper color-coded die for a reliable connection
  • These aluminum terminals have the same design features and benefits as the 1-hole YA-A with an added stud hole for a more secure termination to various types of equipment pads
  • Used for Y644HSXT, Y81KFT, Y81KFTMBH, PAT81KFT-18V Crimpers
  • Straight tongue angel
  • 600 kcmil stranded conductor size
  • 2-7/8 in L Strip, 1.75 in Hole Center to Center Distance, 0.63 in Hole Center to End, 0.77 in Hole Center to Barrel

Specification

Material
Aluminum
Series
YA36A3
Stud Size
1/2 in
Temperature Rating
90 deg C
Tongue Size
3.15 in L x 1.62 in W x 0.52 in THK
Tongue Style
Straight/Standard
Type
2-Hole Non-Insulated
Voltage Rating
600 VAC to 35 kV
Application
For use with copper or aluminum conductors
Standard & Approvals
UL468A-468B Listed, CSA Certified and RoHS Compliant
Conductor Size
600 kcmil
Barrel Size
2.47 in L
Color Code
Black
Conductor Type
Aluminum/Copper
Die Code
473
Overall Length
7.09 in
Barrel Style
Beveled
