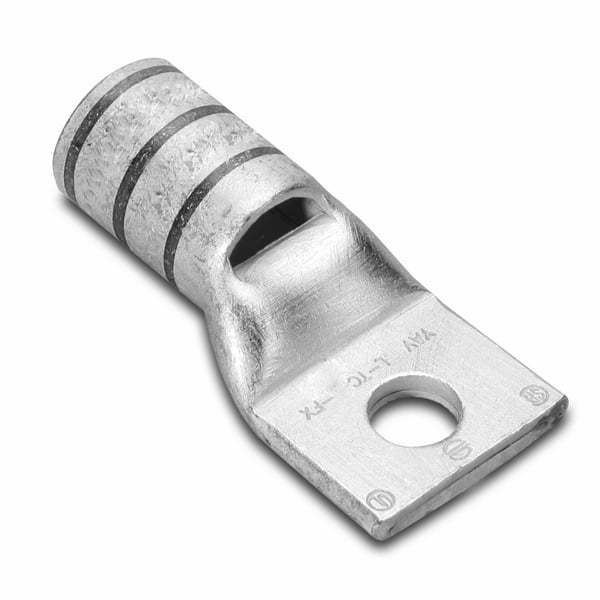

BURNDY® HYLUG™ YAV25L YAV-L 1-Hole Heavy Duty Uninsulated Compression Lug With Inspection Hole, 1/0 AWG Stranded Copper Conductor, Die Code: 43, 3/8 in Stud, Electrolytic Copper

Selected Data-Spec SheetBURNDY® HYLUG™ YAV25L YAV-L 1-Hole Heavy Duty Uninsulated Compression Lug With Inspection Hole, 1/0 AWG Stranded Copper Conductor, Die Code: 43, 3/8 in Stud, Electrolytic Copper
Data-Spec SheetBURNDY® HYLUG™ YAV25L YAV-L 1-Hole Heavy Duty Uninsulated Compression Lug With Inspection Hole, 1/0 AWG Stranded Copper Conductor, Die Code: 43, 3/8 in Stud, Electrolytic Copper

Documents

Short Description

BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.

Features

  • Uninsulated compression terminal manufactured from electrolytic copper and is for use on type AN aircraft cable, extra flexible conductors and commercial (code) conductors
  • The seamless tubing produces a double thick tongue and seamless barrel design provides a strong connector for demanding applications requiring high reliability
  • Used for other equipment that is subject to vibration or requiring dependable electrical performance
  • The benefits of YAV-L connectors are the same as YAV connectors for stranded conductors
  • For HYTOOL™ MY28, MY29-11 non-ratchet, HYPRESS™ Y29NC, Y29B, DV25L die nest, Y29PR die indentor, (1) crimp, Y35, Y39, UV25L die nest, Y35P3 die indentor, (1) crimp, Y750, UV25L die nest, Y34PA die indentor, (1) crimp installation tools
  • Bulk packaging
  • AN 6 flex aircraft cable size, 1/0 AWG solid/stranded size conductor size
  • Copper/Flex conductor
  • 1/0 AWG solid/stranded conductor size
  • 11/16 in L Strip, 1.61 in Hole Center to Barrel End, 0.43 in Hole Center to Barrel
  • Electro Tin Plated Copper

Specification

Material
Copper
Overall Length
2.03 in
Series
YAV-L
Stud Size
3/8 in
Tongue Size
0.81 in W
Tongue Style
Straight/Ring
Type
1-Hole Heavy Duty Non-Insulated
Application
For industrials, hospitals, electric utilities, shipboard and marine, computers, steel mills and mining equipment
Conductor Size
1/0 AWG
Barrel Style
Short
Conductor Type
Copper
Die Code
43
Standard & Approvals
UL467 Military Specified Class 1, CSA Certified, SAE-AS7928 and ROHS Compliant
