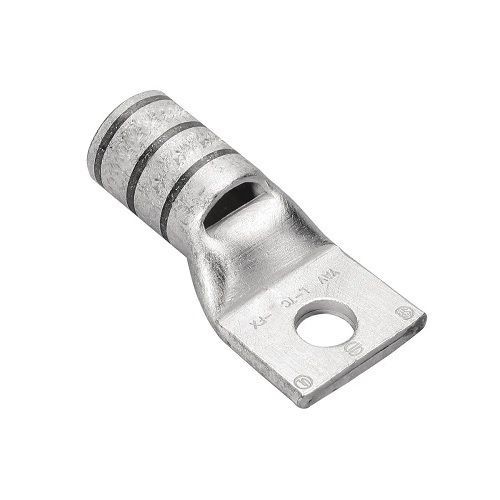

BURNDY® HYLUG™ YAV25L1 YAV-L 1-Hole Heavy Duty Uninsulated Compression Lug With Inspection Hole, 1/0 AWG Stranded Copper Conductor, Die Code: 43, 1/4 in Stud, Electro-Tin Plated Copper

Selected BURYAV25L1
BURYAV25L1

Documents

Short Description

BURNDY® compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high conductivity electrolytic copper. The connectors are normally tinplated, lead plated or plated with proprietary BURNDY® brite finish to provide durable long lasting corrosion resistance. The connector design has been matched to the cable Size to provide the necessary physical strength requirements for reliable electrical performance.

Features

  • Uninsulated compression terminal manufactured from electrolytic copper and is for use on type AN aircraft cable, extra flexible conductors and commercial (code) conductors
  • The seamless tubing produces a double thick tongue and seamless barrel design provides a strong connector for demanding applications requiring high reliability
  • Used for other equipment that is subject to vibration or requiring dependable electrical performance
  • The benefits of YAV-L connectors are the same as YAV connectors for stranded conductors
  • For HYtool MY28, MY29-11 non-ratchet, HYPRESS Y29NC, Y29B, DV25L die nest, Y29PR die indentor, (1) crimp, Y35, Y39, UV25L die nest, Y35P3 die indentor, (1) crimp, Y750, UV25L die nest, Y34PA die indentor, (1) crimp installation tools
  • Bulk packaging
  • 1/0 AWG flex conductor size
  • Pure electrolytic tin plated
  • 1.61 in hole center to barrel end, 0.43 in hole center to barrel

Specification

Series
YAV-L
Specifications
11/16 in L Wire Strip
Stud Size
1/4 in
Tongue Size
0.83 in W
Tongue Type
Ring Straight
Type
1-Hole Heavy Duty Uninsulated
Application
Used on Type AN aircraft cable, extra flexible conductors and commercial (code) conductors, industrials, hospitals, electric utilities, marine, computers and other equipment subject to vibration or requiring dependable electrical performance
Standard & Approvals
ARRA Compliant, CSA Certified, RoHS Compliant, SAE-AS7928, UL 467 Military Specified Class 1 MS20659-117, Buy American Act Compliant
Minimum Order Qty
1
Order Interval
1
Barrel Type
Short
Catalog ID
BURYAV25L1
Conductor Size
1/0 AWG
Conductor Type
Stranded Copper
Die Code
43
Material
Electro-Tin Plated Copper
Overall Length
2.028 in
