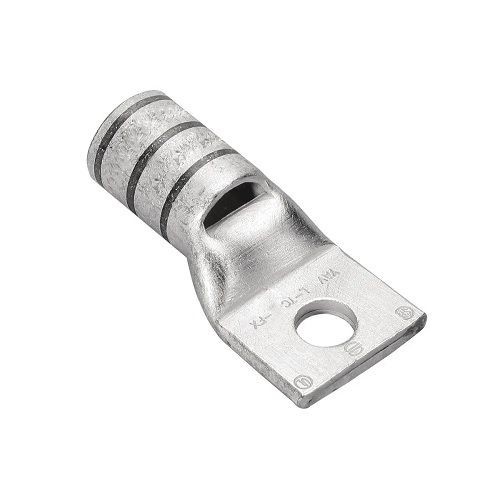

BURNDY® HYLUG™ YAV2CL2 YAV-L 1-Hole Heavy Duty Uninsulated Compression Lug With Inspection Window, 2 AWG Stranded Copper Conductor, Die Code: 41, 5/16 in Stud, Electro-Tin Plated Copper

Selected YAV2CL2BURNDY® HYLUG™ YAV2CL2 YAV-L 1-Hole Heavy Duty Uninsulated Compression Lug With Inspection Window, 2 AWG Stranded Copper Conductor, Die Code: 41, 5/16 in Stud, Electro-Tin Plated Copper
YAV2CL2BURNDY® HYLUG™ YAV2CL2 YAV-L 1-Hole Heavy Duty Uninsulated Compression Lug With Inspection Window, 2 AWG Stranded Copper Conductor, Die Code: 41, 5/16 in Stud, Electro-Tin Plated Copper

Short Description

BURNDY® compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high conductivity electrolytic copper. The connectors are normally tinplated, lead plated or plated with proprietary BURNDY® brite finish to provide durable long lasting corrosion resistance. The connector design has been matched to the cable Size to provide the necessary physical strength requirements for reliable electrical performance.

Features

  • Uninsulated compression terminal manufactured from electrolytic copper and is for use on type AN aircraft cable, extra flexible conductors and commercial (code) conductors
  • The seamless tubing produces a double thick tongue and seamless barrel design provides a strong connector for demanding applications requiring high reliability
  • Used for other equipment that is subject to vibration or requiring dependable electrical performance
  • The benefits of YAV-L connectors are the same as YAV connectors for stranded conductors
  • For HYtool MY28, MY29-11 non-ratchet, HYPRESS Y29NC, Y29B, DV2L die nest, Y29PL die indentor, (1) crimp, Y35, Y39, UV2L die nest, Y35P3 die indentor, (1) crimp, Y750, UV2L die nest, Y34PLA die indentor, (1) crimp installation tools
  • Bulk packaging
  • AN2 aircraft cable size, 2 AWG copper stranded/solid conductor
  • Copper/flex conductor
  • Pure electrolytic tin plated

Specification

Minimum Order Qty
1
Order Interval
1
Catalog ID
BURYAV2CL2
Overall Length
1.72 in
Standard & Approvals
ARRA Compliant, BAA Compliant, CSA Certified, RoHS Compliant, SAE-AS7928, UL 467 Military Specified Class 1 MS20659-147, Buy American Act Compliant
Stud Size
5/16 in
Tongue Size
0.67 in W
Tongue Type
Ring Straight
Voltage Rating
600 VAC
Barrel Type
Short
Conductor Size
2 AWG
Conductor Type
Stranded Copper
Die Code
41
Type
1-Hole Heavy Duty Uninsulated
Specifications
5/8 in L Wire Strip
Material
Electro-Tin Plated Copper
Series
YAV-L
