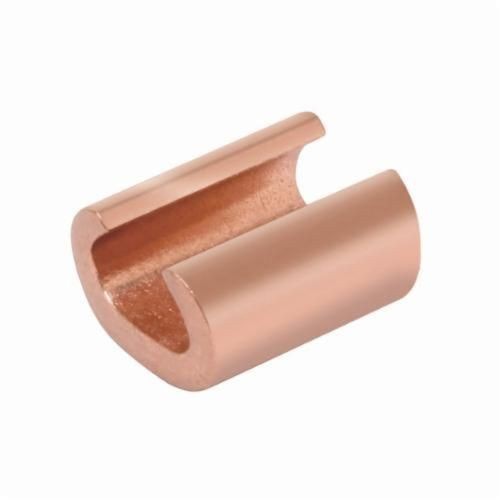

BURNDY® CRIMPIT™ YC8C8 YC-C Compression C-Tap Connector, C Shape, 8 AWG Main/Run, 10 to 8 AWG Tap, Copper
BURNDY® CRIMPIT™ YC8C8 YC-C Compression C-Tap Connector, C Shape, 8 AWG Main/Run, 10 to 8 AWG Tap, Copper
SKU: BURYC8C8
Manufacturer Part Number: YC8C8
UPC: 781810114506
Documents
Features
- Range-taking connector lowers inventory requirements, compact size, easy to tape and insulate connection
- Manufactured from high-conductivity wrought copper provides low resistance and excellent electrical conductivity
- Economical provides low installed cost
- Tools, die set catalog number and (number Of crimps) - MD6 Tool, W-BG die, (1), BG die, (2), OUR840 tool, XNBG die, (2), Y35, Y750, Y45 tool, U-BG die, (1), Y46 tool, U-BG die with PUADP-1 adapter
- Tap size - 8, 10 AWG
- Conductor size - run - 8 AWG
Specification
| Material | Wrought Copper |
|---|---|
| Series | YC-C |
| Shape | C |
| Temperature Rating | 90 deg C |
| Voltage Rating | 600 to 35000 VAC |
| Application | For Making Tap or Parallel Copper Connections |
| Standard & Approvals | RoHS Compliant, UL Listed |
| Conductor Type | Commercial Stranded Copper |
| Finish | Plain Plated |
| Dimensions | 1/2 in L |
| Tap Size | 10 - 8 AWG |
| Specifications | 238 Element A Die Index |
