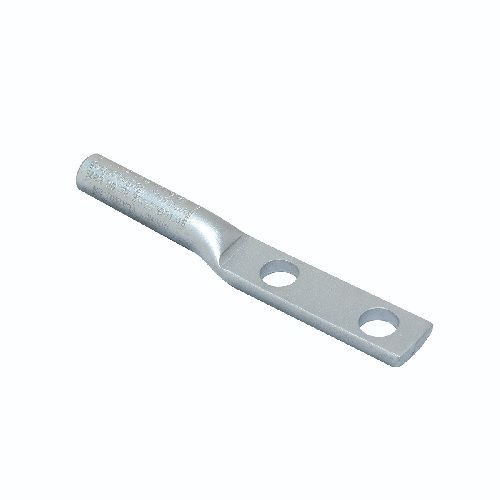

BURNDY® YCA25R2N YCA-R-N 2-Hole Compression Lug, 1/0 AWG ACSR Conductor, Die Code: 243/BG/8A/KS18/9A, Aluminum
BURNDY® YCA25R2N YCA-R-N 2-Hole Compression Lug, 1/0 AWG ACSR Conductor, Die Code: 243/BG/8A/KS18/9A, Aluminum
SKU: BURYCA25R-2N
Manufacturer Part Number: YCA25R2N
UPC: 781810810460
Features
- Aluminum compression HYLUG, NEMA standard mounting holes, installed with same dies as equivalent full tension sleeves
Specification
| Material | Aluminum |
|---|---|
| Overall Length | 6.19 in |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Conductor Size | 1/0 AWG |
| Type | 2-Hole |
| Standard & Approvals | PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Die Code | 243/BG/8A/KS18/9A |
| Conductor Type | ACSR/Aluminum Stranded |
| Catalog ID | BURYCA25R-2N |
| Barrel Size | 0.62 in OD x 2.39 in L |
| Mounting Hole Size | 1/2 in |
| Tongue Size | 0.87 in W |
