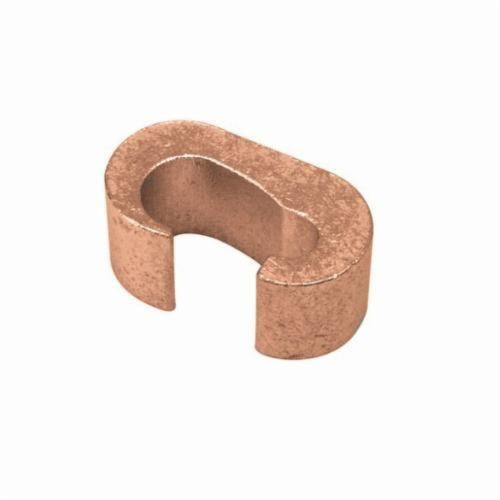

BURNDY® CRIMPIT™ YCHC29TC2 Type YCHC Compression C-Tap, Figure C Shape, 2 AWG to 250 kcmil Main/Run, 4/0 AWG to 250 kcmil Tap, Copper
BURNDY® CRIMPIT™ YCHC29TC2 Type YCHC Compression C-Tap, Figure C Shape, 2 AWG to 250 kcmil Main/Run, 4/0 AWG to 250 kcmil Tap, Copper
SKU: BURYCHC29TC2
Manufacturer Part Number: YCHC29TC2
UPC: 781810013755
Documents
Features
- Wide range of run/tap combinations including class B code I and locomotive flexible conductor combinations, all All (B/B, B/I, I/I) combinations are recommended
- Each connector accommodates many cable combinations, allowing maximum flexibility for the design and installation of a system
- Color coded on the connector that matches the die provides matched system for fast and easy installation
- Each connector has a recommended insulating cover available, flame retardant type CF-FR covers meet oxygen index 28 and UL94 V-O requirements
- Die index embossed on connector after completion of crimp, permanent inspectability of installed connector is insure consistently reliable and dependable connections
- Use PUADP-1 adaptor with U dies in Y46, tools, die set catalog number, and (number of crimps) Y750 tool, U251 die, (1), Y46 tool, U251 die with PUADP-1 adapter, (1), flame retardant cover CFD-FR
- 250 kcmil - 2 AWG (main), 2 - 6 AWG (tap 1), 8 - 14 AWG (tap 2)
- Commercial copper 250 kcmil - 2 AWG, flex copper 4/0 - 2 AWG tap size
- Commercial copper 250 kcmil - 2 AWG, flex copper 4/0 - 2 AWG run size
Specification
| Material | Copper |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | BURYCHC29TC2 |
| Conductor Type | Commercial Stranded/Flexible Copper |
| Dimensions | 0.81 in L x 0.97 in W x 1.78 in H |
| Finish | Electro-Tin Plated |
| Shape | C |
| Temperature Rating | 90 deg C |
| Standard & Approvals | CSA Certified, RoHS Compliant, UL Listed |
| Tap Size | 2 - 6 AWG |
| Specifications | 997 Element A Die Index, Red Color Code, 1 in Wire Strip |
| Series | YCHC |
| Application | For general purpose applications |
