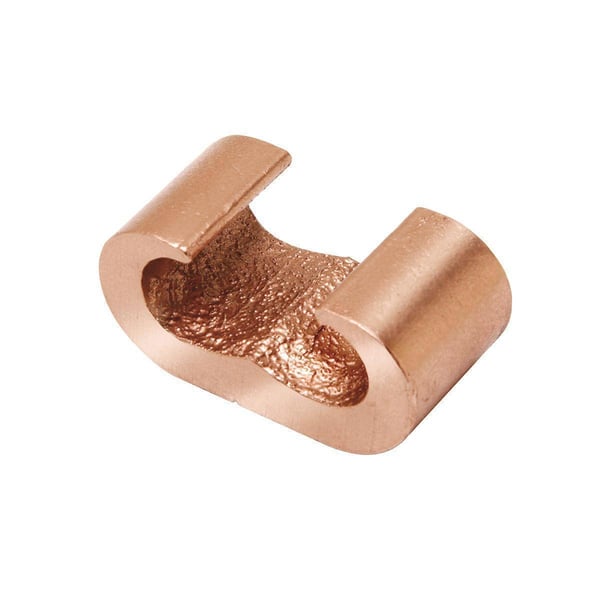

BURNDY® HYGROUND® HYTAP™ YGHC2C2 Type YGHC-C Compression C-Tap Connector, C Shape, 6 to 2 AWG Main/Run, 6 to 2 AWG Tap, Copper
BURNDY® HYGROUND® HYTAP™ YGHC2C2 Type YGHC-C Compression C-Tap Connector, C Shape, 6 to 2 AWG Main/Run, 6 to 2 AWG Tap, Copper
SKU: BURYGHC2C2
Manufacturer Part Number: YGHC2C2
UPC: 781810221013
Features
- Irreversible compression ground tap figure C connectors
- Accommodates all cable combinations from 6 AWG solid through 500 kcmil
- Pre-filled with PENETROX® compound and strip sealed
- Continuous parallel cables into conductor groove
- C-shaped opening permits placing 2 continuous parallel cables into conductor groove
- CSA certified for wire to ground rod
- 10 to 35 sq-mm conductor size run
- 2, 4, 6 AWG, 10 mm, 35 mm run
- 2, 4, 6 AWG, 10 mm, 35 mm tap
- For HYPRESS, Y35, Y39, Y750, PAT750 tool, U-C die, Y45 tool, U-C die with PT6515 adapter, y46 tool and U-C die with puadp-1 adapter
Specification
| Material | Copper |
|---|---|
| Specifications | C Element A Die Index, 1/4 in Ground Rod |
| Finish | Unplated |
| Type | Type YGHC-C |
| Tap Size | 6 to 2 AWG |
| Dimensions | 0.75 in L x 1.16 in H |
| Main Run Size | 6 to 2 AWG |
| Conductor Type | Commercial Stranded/Metric Copper |
| Shape | C |
