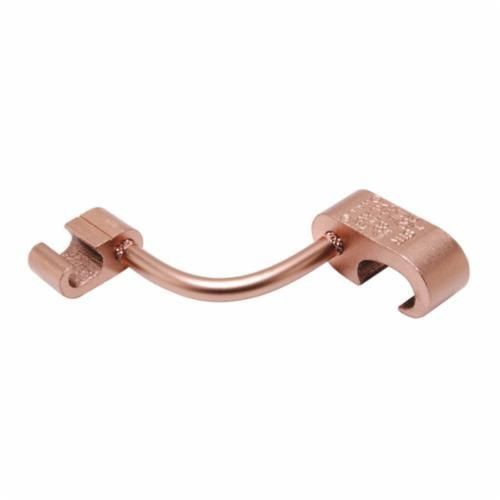

BURNDY® HYGRID YGL34C29 Type YGL-C Compression Cross Grid Connector, 250 to 500 kcmil Conductor, 5/8 to 3/4 in Rod, Copper, Unplated
BURNDY® HYGRID YGL34C29 Type YGL-C Compression Cross Grid Connector, 250 to 500 kcmil Conductor, 5/8 to 3/4 in Rod, Copper, Unplated
SKU: BURYGL34C29
Manufacturer Part Number: YGL34C29
UPC: 781810220047
Documents
Features
- An irreversible compression ground grid cross connector which allows adjustment of the compression elements prior to installation
- Only six connectors and four dies are required to install all combinations from 6 AWG solid through 500 kcmil, UL467 listed
- Acceptable for direct burial In earth and concrete
- Prefilled with PENETROX compound and strip sealed, Dimensions In brackets Represent lightning protection conductors
- Die set catalog number, and (number of crimps): element A: Y750/Y35/Y39 HYPRESS tool, (1) PU998 die, PAT750-18V tool, (1) PU998 polarized die, Y45 HYPRESS tool, (1) S998 or PU998 die, Y46 HYPRESS tool, (1) PU998 or PU998 die, element B: Y750/Y35/Y39 HYPRESS tool, (1) U997 die, PAT750-18V tool, (1) U997P polarized die, Y45 HYPRESS tool, (1) U997 die, Y46 HYPRESS tool, (1) U997 die installation tool
- 250 kcmil - 250 kcmil for element A, NO 2 stranded - 250 kcmil for element B cable to cable, 5/8 in - 3/4 in rod element, NO 2 stranded - 250 kcmil element B, 5/8 in - 3/4 in and NO 5 - 6 element A to rebar
- Size: 3/4 in dimension B x 29 in dimension C x 1/2 in dimension D x 3/4 in dimension B-B x 1.66 in dimension C-C x 1/2 in dimension R
- 997 die index number
Specification
| Material | Copper |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Rod Size | 5/8 to 3/4 in |
| Conductor Size | 250 to 500 kcmil |
| Catalog ID | BURYGL34C29 |
| Application | For Direct Burial in Earth or Concrete |
| Standard & Approvals | UL467, 96 Listed, CSA Certified, IEEE-837, RoHS Compliant |
| Dimensions | 2-1/2 in L |
