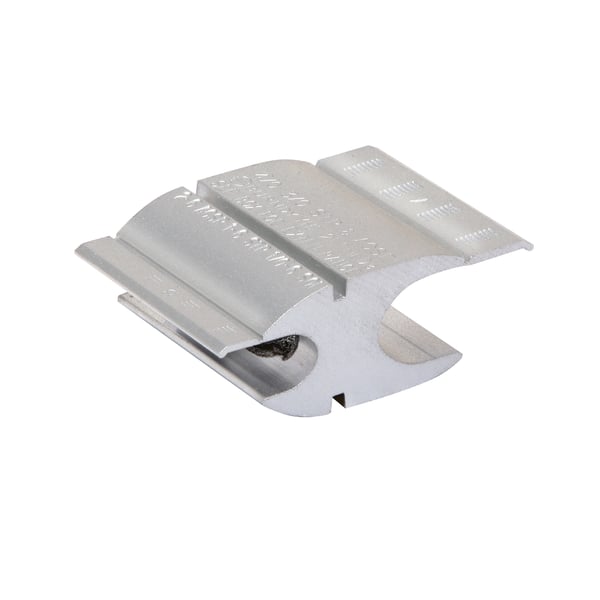

BURNDY® HYCRIMP™ YHO150 Type YHO Overhead Compression Tap Connector, Figure H Shape, 3.3 to 2/0 AWG Main/Run, 6 to 1/0 AWG Tap, Aluminum
BURNDY® HYCRIMP™ YHO150 Type YHO Overhead Compression Tap Connector, Figure H Shape, 3.3 to 2/0 AWG Main/Run, 6 to 1/0 AWG Tap, Aluminum
SKU: BURYHO-150
Manufacturer Part Number: YHO150
UPC: 781810139103
Documents
Features
- Wide range, universal and reversible figure H shaped aluminum connector
- Conductors are separated by the shape of the connector
- Bendable tabs secure both run and tap conductors freeing the linemans hands to work with the installation tool
- Massive aluminum design minimizes corrosion due to galvanic action
- Pre-filled with PENETROX® joint compound and individually packaged
- Conductor ranges and tooling clearly printed on connector and package
- Tools, die set and (number Of crimps) - MD6-8, MD7-8 tool, (5), Y35, Y750 tool, U-O die, (2), Y45 tool, U-O die with PT-6515 adapter, (2), Y46 tool, U-O die with PUADP-1 adapter (2)
- Mechanical or hydraulic installation tooling
- ACSR/ACSR compact/aluminum compact/copper compact/aluminum solid/copper solid/aluminum stranded/copper stranded
- Unplated
- Tap Size - 1, 1/0, 2, 4, 6, 3, 3.3 AWG, 1 (19 or 7 or 3) AWG stranded
- Conductor size - run - 2/0, 1, 1/0, 2, 3, 3.3 AWG, 1 (3) AWG stranded
Specification
| Material | Aluminum |
|---|---|
| Shape | H |
| Specifications | O Element A Die Index, 0.26 - 0.419 in Run Cable Diameter Range, 0.162 - 0.332 in Tap Cable Diameter Range |
| Tap Size | 6 - 1/0 AWG |
| Type | Overhead |
| Application | For ACSR, Aluminum, Compact and Copper Conductors |
| Standard & Approvals | RoHS Compliant, RUS Accepted |
| Dimensions | 1.7 in L x 0.7 in W x 1.12 in H |
| Conductor Type | ACSR/Stranded/Solid/Aluminum/Copper |
