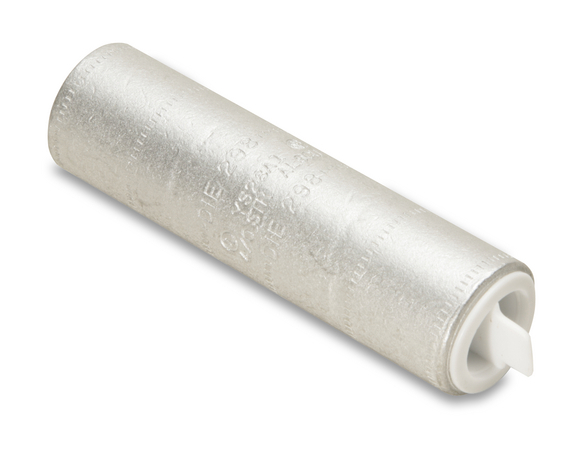

BURNDY® HYLINK™ YS28A1 AL9CU Type YS-A Standard Barrel Uninsulated Compression Butt Splice, 4/0 AWG Conductor, 3.06 in L, Long Barrel, Aluminum, White
BURNDY® HYLINK™ YS28A1 AL9CU Type YS-A Standard Barrel Uninsulated Compression Butt Splice, 4/0 AWG Conductor, 3.06 in L, Long Barrel, Aluminum, White
SKU: BURYS28A1
Manufacturer Part Number: YS28A1
UPC: 781810757307
Documents
Short Description
Features
- Manufactured from high conductivity wrought aluminum with heavy duty wall thickness
- Provides high conductivity/low resistance and ductility for an excellent combination of electrical and crimp forming properties
- Provides durable long lasting corrosion resistance
- Internally beveled barrel
- Provides easy cable entry
- Solid center stop and prefilled with PENTROX® oxide inhibiting compound
- Provides stop for proper conductor insertion and an aid in forcing the PENTROX® between the individual wire strands
- Provides easy wire size and die code identification plus prevents foreign materials from entering and contaminating the connector prior to usage
- Connector is clearly marked with wire size, die index and the proper number and location of crimps
- Provides easy identification and tooling recommendation
- Proper compression forms a homogeneous mass resulting in an excellent electrical connection
Specification
| Material | Aluminum |
|---|---|
| Type | Compression Non-Insulated |
| Voltage Rating | 600 to 35000 VAC |
| Conductor Size | 4/0 AWG |
| Color | White |
| Finish | Tin Plated |
| Length | 3.06 in |
| Conductor Type | Stranded Aluminum/Copper |
| Barrel Type | Chamfered Standard |
| Barrel Size | 1.4 in L |
| Application | For Use on All Combinations of Aluminum to Aluminum, Aluminum to Copper and Copper to Copper Conductor Combinations |
| Standard & Approvals | UL AL9CU Listed, CSA Certified and RoHS Compliant |
| Temperature Rating | 194 deg F |
| Specifications | 1-5/8 in Wire Strip Length |
| Series | YS-A |
