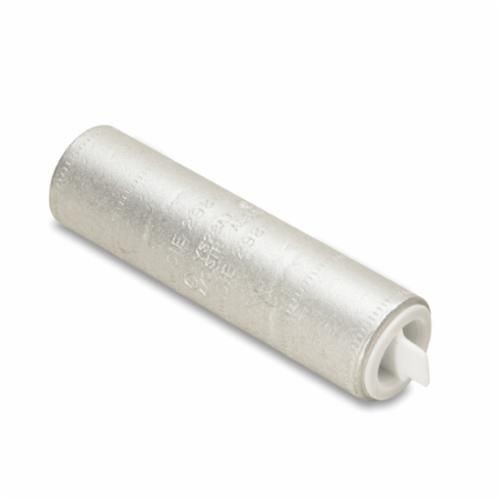

BURNDY® HYLINK™ YS30A1 Type YS-A Standard Barrel Compression Butt Splice, 300 kcmil Conductor, 3.2 in L, Long/Standard Barrel, Aluminum, Blue
BURNDY® HYLINK™ YS30A1 Type YS-A Standard Barrel Compression Butt Splice, 300 kcmil Conductor, 3.2 in L, Long/Standard Barrel, Aluminum, Blue
SKU: BURYS30A1
Manufacturer Part Number: YS30A1
UPC: 781810757406
Documents
Features
- Manufactured from high-conductivity wrought aluminum with heavy duty wall thickness
- Provides high-conductivity/low resistance and ductility for an excellent combination of electrical and crimp forming properties
- Electro-tin plated provides durable long lasting corrosion resistance
- Internally bevelled barrel provides easy cable entry
- Solid center stop and prefilled with Penetrox™ oxide inhibiting compound provides stop for proper conductor insertion and an aid in forcing the penetrox between the individual wire strands
- Color coded end caps provides easy wire size and die code identification plus prevents foreign materials from entering and contaminating the connector prior to usage
- Chamfered barrel style
- Dieless tools (number of crimps)- mechanical HY tool- MY29-3 tool (2), Hydraulic HYPRESS- Y644HS tool (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V tool (2), die index- 470 element A, tools, Die set catalog number and (number of crimps)- Y35, Y39, Y75 tool, U30ART Die, (2), Y46 tool, U30ART Die With PUADP-1 adapter (2)
- Connector is clearly marked with wire size, die index and the proper number and location of crimps provides easy identification and tooling recommendation
- Belled end
Specification
| Length | 3.2 in |
|---|---|
| Material | Aluminum |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | BURYS30A1 |
| Conductor Size | 300 kcmil |
| Finish | Electro-Tin Plated |
| Temperature Rating | 194 deg F |
| Voltage Rating | 600 to 35000 VAC |
| Application | For Use on All Combinations of Aluminum to Aluminum, Aluminum to Copper and Copper to Copper Conductor Combinations |
| Type | Standard Type YS-A |
| Specifications | 1-3/4 in Wire Strip Length |
| Barrel Type | Long |
| Standard & Approvals | CSA Certified, RoHS Complaint, UL Listed |
