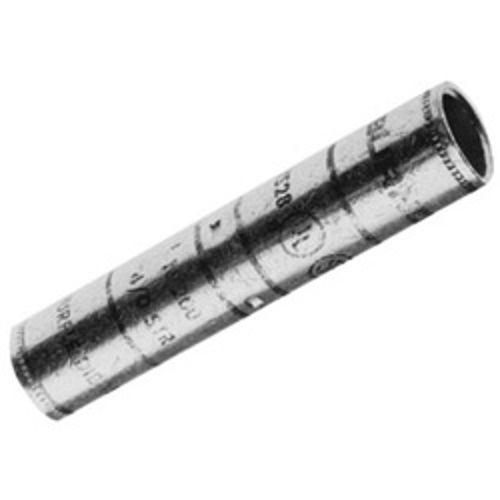

BURNDY® HYLINK™ YS31 Type YS Long Barrel Compression Butt Splice, 350 kcmil Conductor, 4.35 in L, Long Barrel, Copper, Red
BURNDY® HYLINK™ YS31 Type YS Long Barrel Compression Butt Splice, 350 kcmil Conductor, 4.35 in L, Long Barrel, Copper, Red
SKU: BURYS31
Manufacturer Part Number: YS31
UPC: 781810508251
Documents
Features
- Ideal for 600 V heavy duty applications
- Can also be used at higher voltages up to 35kv
- High pull out force provides added security for much greater mechanical and electrical properties
- die index 18 or 324, conductor type commercial stranded copper, wire strip length 2-1/16 in, tools, die set catalog number and (number of crimps) mechanical MD7-34R tool, W31VT die, (4), Y35, Y39, Y750 tool, U31RT die, (4), Y46 tool, U31RT die with PUADP-1 adapter (4)
- Center conductor stops provides a center wire stop for proper conductor insertion
- 185 sq-mm Conductor size
- Made of copper
- Chamfered barrel style
- Tapered end
Specification
| Length | 4.35 in |
|---|---|
| Material | Copper |
| Specifications | 2-1/16 in Wire Strip Length |
| Temperature Rating | 90 deg C |
| Type | Type YS |
| Voltage Rating | 600 to 35000 VAC |
| Application | For Heavy Duty Applications and Used at Higher Voltages Upto 35 kV |
| Standard & Approvals | CSA Certified, RoHS Complaint, UL Listed |
| Conductor Size | 350 kcmil |
| Barrel Type | Long |
| Color | Red |
| Conductor Type | Commercial Stranded Copper |
| Finish | Tin Plated |
