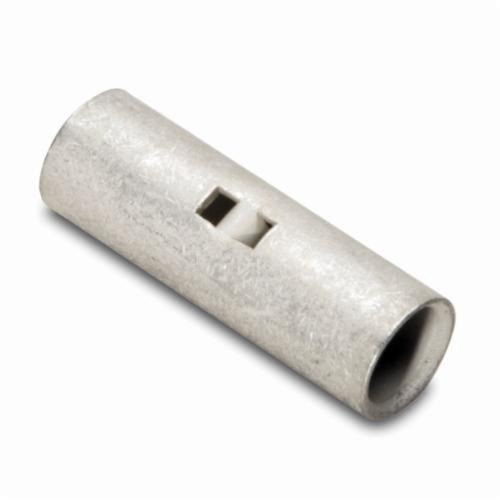

BURNDY® HYLINK™ YSV1CLBOX Type YSV-L Uninsulated Seamless Butt Splice, 1 AWG Conductor, 1.46 in L, Short Barrel, Copper
BURNDY® HYLINK™ YSV1CLBOX Type YSV-L Uninsulated Seamless Butt Splice, 1 AWG Conductor, 1.46 in L, Short Barrel, Copper
SKU: BURYSV1C-L-BOX
Manufacturer Part Number: YSV1CLBOX
UPC: 781810534854
Documents
Features
- Installation tool- HY tool- type AH, aircraft, cable - MY28 tool, all others- MY29-3, MY29-11 tool, 1 crimp, tools, die nest catalog number, die indentor catalog number- HYPRESS- H35, Y35BH, Y39, Y39BH tool, UV1L die nest, Y34PLA die indentor, Y35P3 indentor adaptor
- Box packing
Specification
| Length | 1.46 in |
|---|---|
| Material | Copper |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Barrel Type | Short |
| Conductor Size | 1 AWG |
| Conductor Type | Commercial/Aircraft Solid/Stranded Copper |
| Finish | Tin Plated |
| Type | Non-Insulated Type YSV-L |
| Voltage Rating | 600 VAC |
| Application | For Aircraft, Light Duty Industrial and General Purpose Applications |
| Standard & Approvals | CSA Certified, RoHS Complaint, UL Listed |
| Specifications | 5/8 in L Wire Strip, 0.17 in Maximum Insulation Dia |
| Catalog ID | BURYSV1C-L-BOX |
| Barrel Size | 0.51 in OD |
