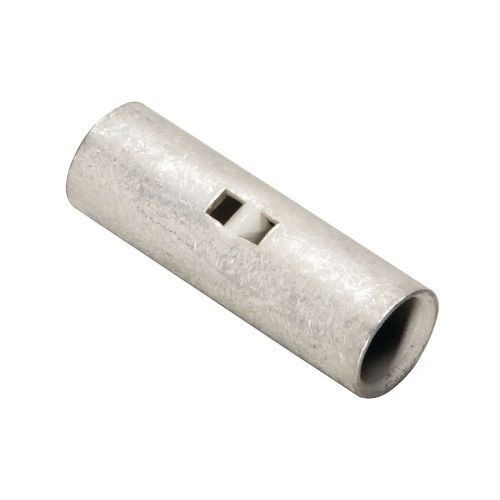

BURNDY® HYLINK™ YSV8CL Type YSV-L Uninsulated Seamless Butt Splice, 8 AWG Conductor, 1 in L, Short Barrel, Copper
BURNDY® HYLINK™ YSV8CL Type YSV-L Uninsulated Seamless Butt Splice, 8 AWG Conductor, 1 in L, Short Barrel, Copper
SKU: BURYSV8CL
Manufacturer Part Number: YSV8CL
UPC: 781810805732
Features
- Installation tool- ratchet- MR89Q, Y8MRB-1, Y1MRTC tool, HY tool type AH, aircraft, cable - MY28 tool, all others- MY29-3, MY29-11 tool, die indentor catalog number- HYPRESS- H35, Y35BH, Y39, Y39BH tool, UV8L-1 die nest, Y34PL die indentor, Y35P3 indentor adaptor
Specification
| Specifications | 7/16 in L Wire Strip |
|---|---|
| Type | Type YSV-L Uninsulated |
| Voltage Rating | 600 VAC |
| Application | Aircraft, Light Duty Industrial and General Purpose |
| Standard & Approvals | ARRA Compliant, BAA Compliant, RoHS Compliant, CSA Certified, UL 5085, UL/cUL E46323, UL 702X, IEC 61558, Buy American Act Compliant |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Barrel Size | 0.27 in Dia |
| Barrel Type | Short |
| Catalog ID | BURYSV8CL |
| Conductor Size | 8 AWG |
| Conductor Type | Commercial/Aircraft Stranded Copper |
| Length | 1 in |
| Material | Copper |
| Finish | TiN Coated |
