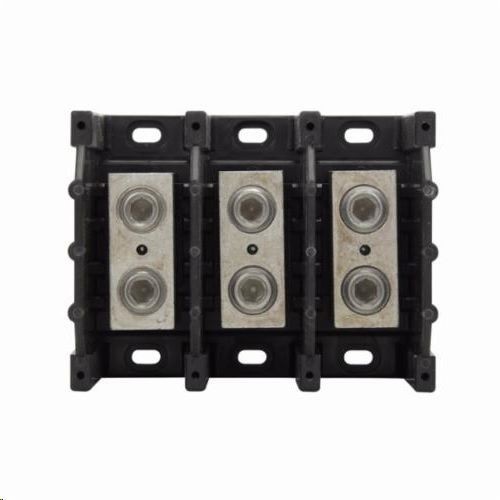

Bussmann® 16303-3 Splicer Terminal Power Distribution Block, 600 VAC/VDC, 310 A, 3 Poles, 6 AWG to 350 kcmil Wire, Thermoplastic

Selected 16303-3Bussmann® 16303-3 Splicer Terminal Power Distribution Block, 600 VAC/VDC, 310 A, 3 Poles, 6 AWG to 350 kcmil Wire, Thermoplastic
16303-3Bussmann® 16303-3 Splicer Terminal Power Distribution Block, 600 VAC/VDC, 310 A, 3 Poles, 6 AWG to 350 kcmil Wire, Thermoplastic

Short Description

Bussmann® series splicer blocks allow for increasing or decreasing wire size within a circuit to accommodate different connections from the power source to the branch load. Splicer blocks are available for wire sizes up to 500 kcmil and amp ratings up to 760 A. They are UL Recognized to UL 1059 and rated for use in UL 508A industrial control panels. These blocks are factory configured from 1- to 4-poles (catalog number dependent) with optional covers available to enhance safety (order covers separately).

Features

  • Rated for dual wire port application to increase the possible number of lineside and loadside connections
  • Dual wire applications are only viable when using two wires of the same size, stranding, and insulating and conductor material in the same port
  • Ferrule applications allow for the use of a broader range of conductor stranding and simulate a more efficient, solid wire connection with the terminal port
  • Molded thermoplastic base, tin-plated aluminum connector
  • SMD/SMT style mounting
  • 6 AWG - 350 kcmil copper/aluminum line/load
  • (1) Screw primary, (1) Screw secondary
  • Flammability rating UL 94-V0

Specification

Material
Thermoplastic
Number Of Poles
3
Amperage Rating
310 A
Dimensions
5.21 in L x 4 in W x 3.32 in H
Voltage Rating
600 VAC/VDC
Color
Black
Finish
Tin Plated
Primary Connections/Pole
1
Secondary Connection/Pole
1
Short Circuit Current Rating
10 kA
Standard & Approvals
CSA Certified, RoHS Complaint, UL Listed
