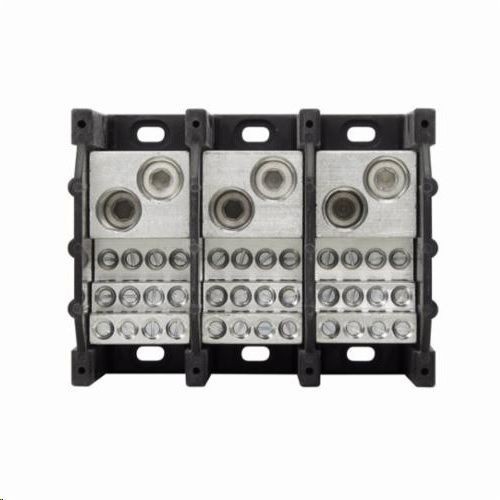

Bussmann® Magnum® 16377-3 Barrier Terminal Power Distribution Block, 600 VAC/VDC, 570 A, 3 Poles, 4 AWG to 300 kcmil Wire, Thermoplastic

Selected 16377-3Bussmann® Magnum® 16377-3 Barrier Terminal Power Distribution Block, 600 VAC/VDC, 570 A, 3 Poles, 4 AWG to 300 kcmil Wire, Thermoplastic
16377-3Bussmann® Magnum® 16377-3 Barrier Terminal Power Distribution Block, 600 VAC/VDC, 570 A, 3 Poles, 4 AWG to 300 kcmil Wire, Thermoplastic

Short Description

Bussmann® series UL Recognized power distribution blocks offer a variety of lineside and loadside port configurations to provide greater flexibility in panel wiring and wire management. These blocks are UL Recognized to UL 1059 and rated for use in UL 508A industrial control panels. Blocks are factory configured in 1-, 2 and 3-pole versions, and have optional covers to enhance safety (order covers separately).

Features

  • Rated for dual wire port application to increase the possible number of lineside and loadside connections
  • Dual wire applications are only viable when using two wires of the same size, stranding, and insulating and conductor material in the same port
  • Ferrule applications allow for the use of a broader range of conductor stranding and simulate a more efficient, solid wire connection with the terminal port
  • Molded thermoplastic base, tin-plated aluminum connector
  • SMD/SMT style mounting
  • (2) 4 AWG - 300 kcmil copper/aluminum line, (12) 14 - 4 AWG copper/12 - 4 AWG aluminum
  • (12) 0.25 in quick connect
  • (1) Screw primary, (12) Quick Connect secondary

Specification

Material
Thermoplastic
Number Of Poles
3
Amperage Rating
570 A
Voltage Rating
600 VAC/VDC
Color
Black
Dimensions
5.21 in L x 4 in W x 3.32 in H
Finish
Tin Plated
Primary Connections/Pole
1
Secondary Connection/Pole
12
Short Circuit Current Rating
10 kA
Standard & Approvals
CSA Class 6228-01, File No. 15364 Certified, RoHS Complaint, UL 1059, Guide No. XCFR2, File No. E62622 Listed
