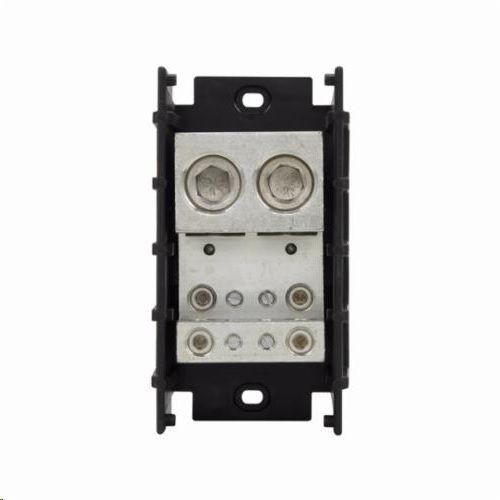

Bussmann® Magnum® 16528-1 Barrier Terminal Power Distribution Block, 600 VAC/VDC, 840 A, 1 Pole, 2 AWG to 600 kcmil Wire, Thermoplastic
Bussmann® Magnum® 16528-1 Barrier Terminal Power Distribution Block, 600 VAC/VDC, 840 A, 1 Pole, 2 AWG to 600 kcmil Wire, Thermoplastic
SKU: BUS16528-1
Manufacturer Part Number: 16528-1
UPC: 051712149938
Short Description
Features
- Rated for dual wire port application to increase the possible number of lineside and loadside connections
- Dual wire applications are only viable when using two wires of the same size, stranding, and insulating and conductor material in the same port
- Ferrule applications allow for the use of a broader range of conductor stranding and simulate a more efficient, solid wire connection with the terminal port
- Molded thermoplastic base, tin-plated aluminum connector
- SMD/SMT style mounting
- (2) 2 AWG - 600 kcmil copper/aluminum line, (4) 6 - 3/0 AWG copper/aluminum, (4) 14 - 14 AWG copper/aluminum load
- (8) 0.25 in quick connect
- (2) Screw primary, (8) Quick Connect secondary
Specification
| Material | Thermoplastic |
|---|---|
| Number Of Poles | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 840 A |
| Catalog ID | BUS16528-1 |
| Color | Black |
| Dimensions | 3.1 in L x 5.5 in W x 2.93 in H |
| Finish | Tin Plated |
| Voltage Rating | 600 VAC/VDC |
| Primary Connections/Pole | 2 |
| Secondary Connection/Pole | 8 |
| Short Circuit Current Rating | 10 kA |
| Standard & Approvals | CSA Certified, Class 6228-01, File No. 15364, RoHS Complaint, UL Guide No. XCFR2, File No. E62622 Listed |
