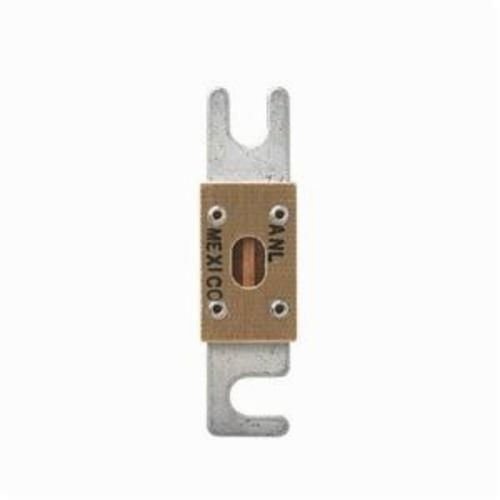

Bussmann® ANL-150 Circuit Limiting Non-Time Delay Fast Acting Fuse, 150 A, 80 VDC, 2700 A, Flat Body
Bussmann® ANL-150 Circuit Limiting Non-Time Delay Fast Acting Fuse, 150 A, 80 VDC, 2700 A, Flat Body
SKU: BUSANL-150
Manufacturer Part Number: ANL-150
UPC: 051712706148
Documents
Features
- Time-delay sizing for inductive circuits
- Small footprint saves space
- Window shows limiter status
Specification
| Material | Glass Melamine |
|---|---|
| Mounting Type | Stud |
| Amperage Rating | 150 A |
| Terminal Type | Blade |
| Interrupt Rating | 2700 A |
| Standard & Approvals | UL Guide JFHR2, SAE J1171 Ignition Protected, CSA Certified, RoHS Complaint |
| Body Style | Flat |
| Body Size | 7/8 in Dia x 3-3/16 in L |
| Application | Aviation, Fork Lifts and Marine |
| Voltage Rating | 32 VAC/80 VDC |
| Element | 1 |
