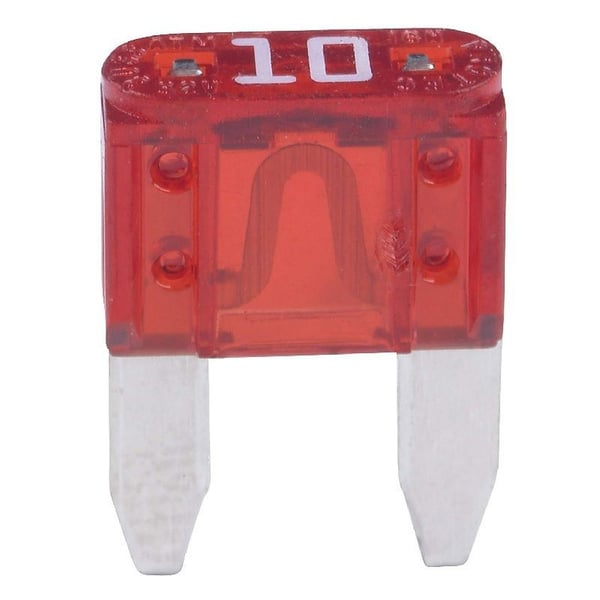

Bussmann® ATM-10 Fast Acting Miniature Automotive Fuse, 10 A, 32 VAC/VDC, 1 kA

Selected ATM-10Bussmann® ATM-10 Fast Acting Miniature Automotive Fuse, 10 A, 32 VAC/VDC, 1 kA
ATM-10Bussmann® ATM-10 Fast Acting Miniature Automotive Fuse, 10 A, 32 VAC/VDC, 1 kA

Short Description

The ATM, ATC™ and MAXI fuses use the same universal color-coding as traditional non-illuminating fuses. Illuminating fuse holders allow adding circuits with EasyID, but use regular ATM and ATC blade fuses.

Features

  • A range of UL® Listed fast-acting miniature blade fuses for automotive and low voltage circuits
  • Operating temperature range -40 deg C to 100 deg C, 95% RH non-condensing
  • Silver-plated zinc terminals and element
  • UL 94 HB flammability rating

Specification

Interrupt Rating
1 kA
Length
0.642 in
Material
Polyamide
Mounting Type
Holder
Voltage Rating
32 VAC/VDC
Color
Red
Element
Single
Amperage Rating
10 A
Terminal Type
Blade
Depth
0.15 in
Application
Low Voltage Control Circuits
Standard & Approvals
ISO 8820/JASO D612/SAE J2077 and J1171, UL 275A, Guide FHXT, File No. AU169, RoHS Compliant
