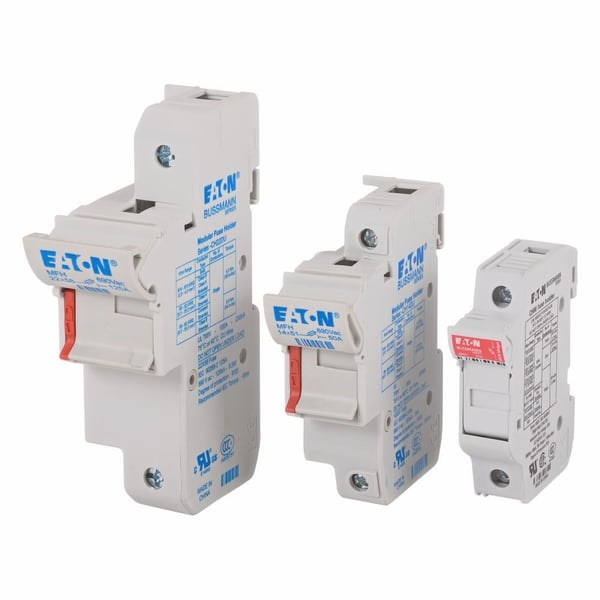

Bussmann® CH143DIU Low Voltage Cylindrical Modular Fuse Holder With Neon Indicator, 690 VAC, 50 A, 3 Poles

Selected CH143DIUBussmann® CH142DU Low Voltage Cylindrical Modular Fuse Holder, 690 VAC, 50 A, 2 Poles
CH143DIUBussmann® CH142DU Low Voltage Cylindrical Modular Fuse Holder, 690 VAC, 50 A, 2 Poles

Documents

Short Description

Eaton's Bussmann series modular fuse holders are specifically designed to be used in conjunction with cylindrical fuses sizes 10 x 38 mm, 14 x 51 mm and 22 x 58 mm and FW ferrule type fuses.

Features

  • Compact dimensions
  • Ventilation zones optimized for a better heat dissipation
  • Inbuilt padlocking facility
  • IP20 degree of protection
  • Photovoltaic version rated at 1500 VDC (IEC only) for use with gPV fuse links
  • Flexibility to mount on DIN rail and/or screw mounting
  • Toolless DIN rail mounting, improves ease of use and reduces installation time and costs

Specification

Fuse Diameter
14 mm
Fuse Length
51 mm
Mounting Type
DIN Rail
Number Of Poles
3
Amperage Rating
50 A
Dimensions
225 mm L x 48 mm W x 80 mm H
Voltage Rating
690 VAC
Application
Electrical Assemblies, Panels and EOEMs - Aftermarket, Panel Builders, Control Panels for Machines, Industrial Facilities and Factories - Power Distribution and Control
EANUCC13
5027590496810
Standard & Approvals
CCC Certified, CE Certified, EAC Rated, IEC 60269-1/60269-2, RoHS Compliant, UL Listed File No. E14853
Suitable For Use With
Standard Cylindrical Fuse-Links and FW Type Ferrule Fuse-Links
Temperature Rating
-20 to 70 deg C
