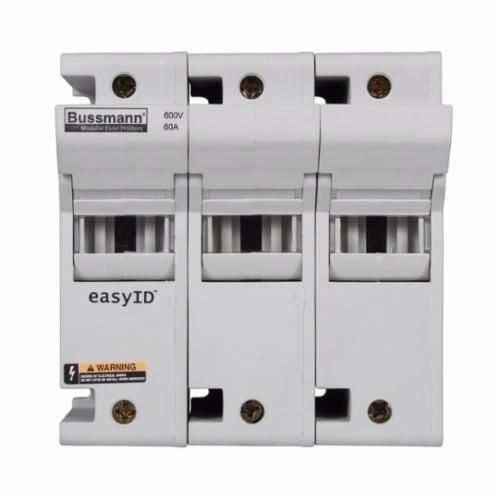

Bussmann® CH60J3 Finger-Safe Modular Fuse Holder, 600 VAC/VDC, 60 A, 18 to 1 AWG Wire, 3 Poles

Selected CH60J3Bussmann® CH60J3 Finger-Safe Modular Fuse Holder, 600 VAC/VDC, 60 A, 18 to 1 AWG Wire, 3 Poles
CH60J3Bussmann® CH60J3 Finger-Safe Modular Fuse Holder, 600 VAC/VDC, 60 A, 18 to 1 AWG Wire, 3 Poles

Features

  • Fuse holder wire ports dual wire rated from 18 - 3 AWG
  • Tin-plated copper clip
  • Finger-safe IP20 protection
  • NO 18 - 1 AWG Single, NO 18 - 3 AWG Single wire size
  • Without indicator

Specification

Material
Thermoplastic
Mounting Type
DIN Rail
Number Of Poles
3
Amperage Rating
60 A
Voltage Rating
600 VAC/VDC
Application
For electrical assemblies, panels and eoems
Color
White
Connection Type
Box Lug
Standard & Approvals
UL 512, Guide IZLT, File No. E14853 CSA C22.2 No. 39, Class 6225-01, File No. LR47235, CE Certified, RoHS Complaint
Temperature Rating
85 deg C
Class
J
Dimensions
4.88 in H x 4.72 in W x 3.31 in D
Fuse Length
2.38 in
Fuse Diameter
1.06 in
Suitable For Use With
LPJ Series Time Delay, JKS Series Fast Acting, DFJ Series Class J High Speed Fuses
