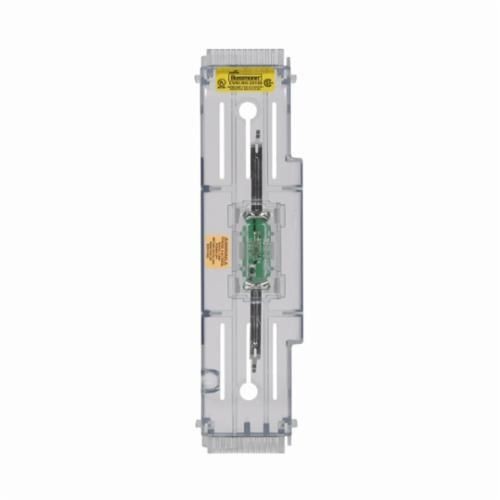

Bussmann® CVRI-RH-25100 Indicating Fuse Block Cover, 70 to 100 A, 250 VAC, For Use With HM25100-1CR/HM25100-2CR/HM25100-3CR Class H/RM25100-1CR/RM25100-2CR/RM25100-3CR Class R Knife Blade Fuse Block, Thermoplastic

Selected CVRI-RH-25100Bussmann® CVRI-RH-25100 Indicating Fuse Block Cover, 70 to 100 A, 250 VAC, For Use With HM25100-1CR/HM25100-2CR/HM25100-3CR Class H/RM25100-1CR/RM25100-2CR/RM25100-3CR Class R Knife Blade Fuse Block, Thermoplastic
CVRI-RH-25100Bussmann® CVRI-RH-25100 Indicating Fuse Block Cover, 70 to 100 A, 250 VAC, For Use With HM25100-1CR/HM25100-2CR/HM25100-3CR Class H/RM25100-1CR/RM25100-2CR/RM25100-3CR Class R Knife Blade Fuse Block, Thermoplastic

Features

  • UL 94V0, self-extinguishing (Block), UL 94HB, self-extinguishing (Covers) flammability rating
  • Tin plated aluminum terminals
  • Integral dovetails allow assembly of multiple poles at point-of-use for greater application flexibility
  • Factory assembled two- and three-pole configurations available
  • Up to four mounting holes per pole increase installation flexibility
  • Standard phase barriers between poles for additional safety
  • Design meets UL creep and clearance requirements for Industrial Power Circuits (UL 508 and UL 845)
  • Standard fuse clip reinforcing springs enhance electrical contact

Specification

Height
2.8 in
Length
6.8 in
Material
Thermoplastic
Amperage Rating
70 to 100 A
Voltage Rating
250 VAC
Standard & Approvals
UL E58836 - JDVS2 for Covers, CSA 47235 - 6225-01, cULus File No. E14853 - IZLT and IZLT for Blocks, RoHS Compliant
Suitable For Use With
HM25100-1CR/HM25100-2CR/HM25100-3CR Class H/RM25100-1CR/RM25100-2CR/RM25100-3CR Class R Knife Blade Fuse Block
