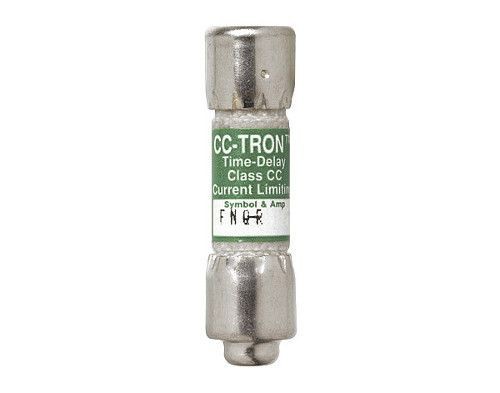

Bussmann® LIMITRON™ FNQ-R-5 Current Limiting Time Delay Fuse, 5 A, 600 VAC, 200 kA Interrupt, Class CC, Cylindrical Body

Selected FilesBUSFNQ R 5
FilesBUSFNQ R 5

Documents

Short Description

Eaton’s Bussmann® series Limitron fuses provide short circuit protection that is, on average, 10X faster than basic circuit breakers or fuses. These current-limiting UL® and CSA Listed fuses are available in Class CC, J, R, and T - all with a 200kA interrupting rating.

Features

  • Provides 10X better current limitation to help prevent equipment damage caused by short circuit events
  • 200 kA interrupting rating complies with NEC Section 110.9 for todays large capacity systems
  • Fast-acting fuse helps prevent equipment damage caused by short circuit events
  • Rejection type fuse fits both standard and rejection-style holders
  • The Class CC FNQ-R Limitron fuse meets the needs of control circuit transformer protection
  • FNQ-R fuses can be sized according to NEC and UL requirements and still allow the high inrush currents, with significantly more time-delay than the UL minimum value of 12 seconds at 200% for Class CC fuses
  • Nickel plated brass end cap
  • 200 kA AC (RMS symmetrical)

Specification

Interrupt Rating
200 kA
Material
Melamine
Mounting Type
Holder
Minimum Order Qty
1
Order Interval
1
Video
https://www.youtube.com/watch?v=YMvqUyoETXk
Body Size
13/32 in Dia x 1-1/2 in L
Body Style
Cylindrical
Catalog ID
BUSFNQ-R-5
Class
CC
Element
Dual
Voltage Rating
600 V
Application
Line Protection, Small Control Transformers, Industrial Control and Branch Circuits
Amperage Rating
5 A
Response Time
12 sec at 200%
Standard & Approvals
UL 248-4, Guide No. JDDZ, File No. E4273, CSA Class 1422-01, File No. 53787-HRC-MISC, CE Certified, RoHS Compliant
Terminal Type
Ferrule
