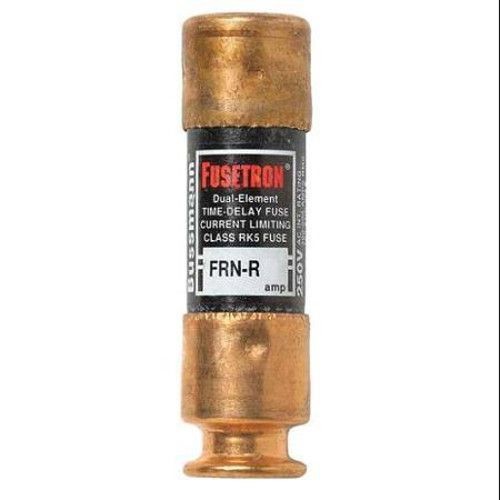

Bussmann® FRN-R-100 Current Limiting Time Delay Fuse, 100 A, 250 VAC/125 VDC, 200/20 kA Interrupt, Class RK5

Selected FilesBUSFRN R 100
FilesBUSFRN R 100

Documents

Short Description

Fusetron fuses are on average 23% more energy efficient than the next leading brand.

Features

  • Provides motor overload ground fault and short circuit protection
  • Helps protect motors against burnout from overloads and single phasing when sized properly
  • Simplifies and improves blackout prevention (selective coordination)
  • Dual-element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short circuit and overload protection
  • The overload element provides protection against low level over current of overloads and will hold an overload which is five times greater than the ampere rating of the fuse for a minimum of ten seconds

Specification

Interrupt Rating
200/20 kA
Material
Fiberglass
Mounting Type
Holder
Amperage Rating
100 A
Voltage Rating
250 VAC
Application
Combination Starters, Machinery Disconnects, Motor Control Centers And Power Panelboards
Body Size
1.06 in Dia x 5.88 in L
Body Style
Cartridge
Class
RK5
Element
Dual
Response Time
10 sec at 500%
Standard & Approvals
UL Listed, Std. 248-12, Class RK-5, Guide JDDZ, File E4273, CSA Certified, C22.2 No. 248.12, Class 1422-02, File 53787, CE Certified, RoHS Compliant
Terminal Type
Knife Blade
