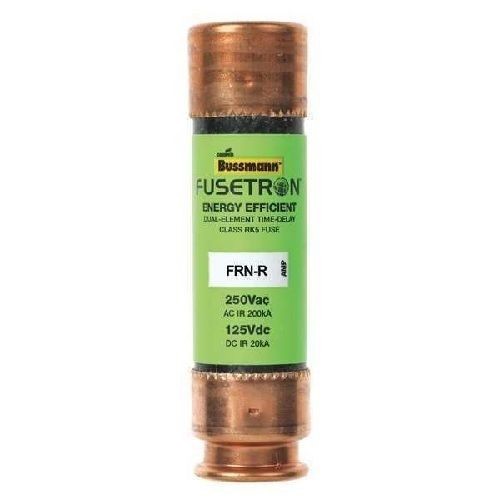

Bussmann® FRN-R Current Limiting Time Delay Fuse, 9 A, 250 VAC/125 VDC, 200/20 kA Interrupt, Class RK5
Bussmann® FRN-R Current Limiting Time Delay Fuse, 9 A, 250 VAC/125 VDC, 200/20 kA Interrupt, Class RK5
SKU: BUSFRN-R-9
Manufacturer Part Number: FRN-R-9
UPC: 051712507271
Documents
Short Description
Features
- Provides motor overload ground fault and short circuit protection
- Helps protect motors against burnout from overloads
- Helps protect motors against burnout from single phasing on three-phase systems
- Simplifies and improves blackout prevention (selective coordination)
- Dual-element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short circuit and overload protection
- The overload element provides protection against low level over current of overloads and will hold an overload which is five times greater than the ampere rating of the fuse for a minimum of ten seconds
Specification
| Interrupt Rating | 200/20 kA |
|---|---|
| Material | Fiberglass |
| Mounting Type | Holder |
| Voltage Rating | 250 VAC/125 VDC |
| Application | Combination Starters, Machinery Disconnects, Motor Control Centers And Power Panelboards |
| Body Size | 0.56 in Dia x 2 in L |
| Body Style | Cylindrical |
| Class | RK5 |
| Element | Dual |
| Amperage Rating | 9 A |
| Response Time | 8 sec at 500% |
| Standard & Approvals | UL Listed, Std. 248-12, Class RK-5, Guide JDDZ, File E4273, CSA Certified, C22.2 No. 248.12, Class 1422-02, File 53787, CE Certified, RoHS Compliant |
| Terminal Type | Ferrule |
