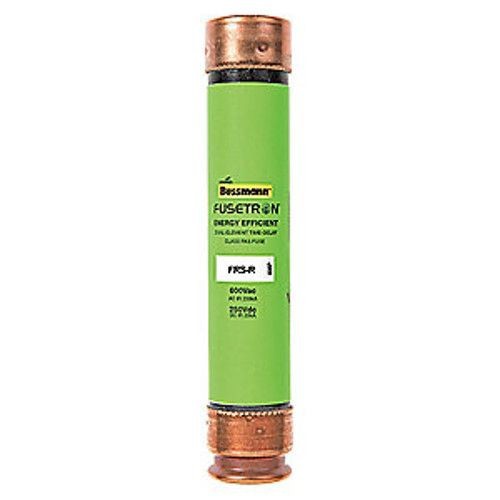

Bussmann® FRS-R-125 Current Limiting Time Delay Fuse, 125 A, 600 VAC/300 VDC, 200/20 kA Interrupt, Class RK5
Bussmann® FRS-R-125 Current Limiting Time Delay Fuse, 125 A, 600 VAC/300 VDC, 200/20 kA Interrupt, Class RK5
SKU: BUSFRS-R-125
Manufacturer Part Number: FRS-R-125
UPC: 051712508452
Specification
| Interrupt Rating | 200/20 kA |
|---|---|
| Material | Fiberglass |
| Mounting Type | Holder |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | https://www.youtube.com/watch?v=YMvqUyoETXk |
| Amperage Rating | 125 A |
| Body Size | 1.61 in Dia x 9.63 in L |
| Body Style | Cylindrical |
| Catalog ID | BUSFRS-R-125 |
| Class | RK5 |
| Element | Dual |
| Voltage Rating | 600 VAC/300 VDC |
| Application | Combination Starters, Machinery Disconnects, Motor Control Centers And Power Panelboards |
| Response Time | 10 sec at 500% |
| Standard & Approvals | UL 248-12, Class RK5, Guide JDDZ, File No. E4273, CSA C22.2 No. 248.12, Class 1422-02, File No. 53787, CE Certified, RoHS Complaint |
| Terminal Type | Knife Blade |
