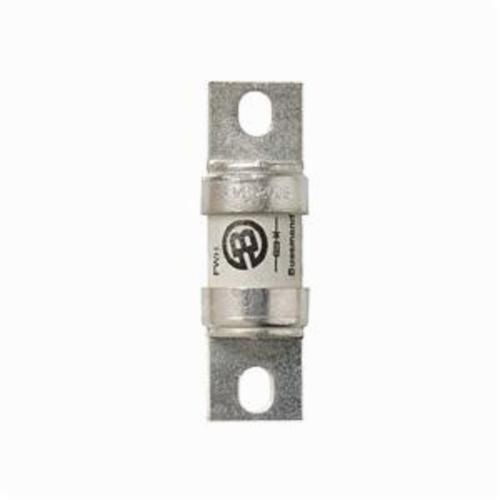

Bussmann® FWH-400A Fast Acting High Speed Semiconductor Fuse, 400 A, 500 VAC/VDC, 200/50 kA, Cylindrical Body

Selected FWH-400ABussmann® FWH-400A Fast Acting High Speed Semiconductor Fuse, 400 A, 500 VAC/VDC, 200/50 kA, Cylindrical Body
FWH-400ABussmann® FWH-400A Fast Acting High Speed Semiconductor Fuse, 400 A, 500 VAC/VDC, 200/50 kA, Cylindrical Body

Short Description

EATON offers a complete range of North American blade and Flush end style fuses and accessories. North American style fuses provide an excellent solution for medium power applications. While there are currently no published standards for these fuses, the industry has standardized on mounting centers that accept Bussmann® series fuses.

Features

  • Excellent DC performance
  • Low arc voltage and low energy let-through (I2t)
  • Superior cycling capability
  • North American style
  • 200 kA at 500 VAC/50 kA at 500 VDC interrupt rating

Specification

Frequency Rating
45 to 1000 Hz
Interrupt Rating
200/50 kA
Material
Ceramic
Mounting Type
Stud
Amperage Rating
400 A
Application
DC Common Bus, DC Drives, Power Converters/Rectifiers and Reduced Voltage Starters
Body Style
Cylindrical
Element
Single
Standard & Approvals
ARRA, Buy American Act Compliant, UL Listed, CE Certified, CSA Certified, RoHS Complaint
Terminal Type
Standard Blade
Body Size
1-1/2 in Dia x 4-11/32 in L
Voltage Rating
500 VAC/VDC
