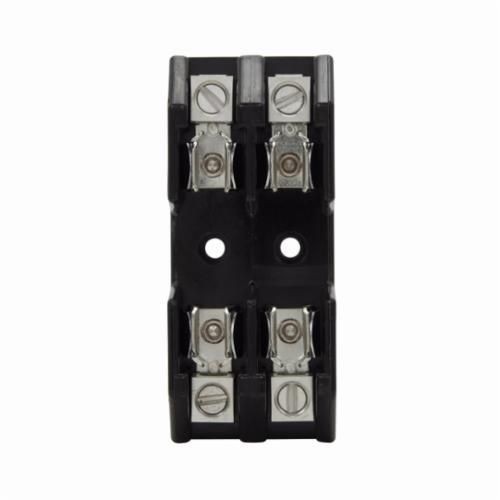

Bussmann® G30060-2CR Open Style Fuse Block, 480 VAC, 35 to 60 A, 14 to 2/8 to 2 AWG Wire, 2 Poles
Bussmann® G30060-2CR Open Style Fuse Block, 480 VAC, 35 to 60 A, 14 to 2/8 to 2 AWG Wire, 2 Poles
SKU: BUSG30060-2CR
Manufacturer Part Number: G30060-2CR
UPC: 051712736657
Features
- Withstand 100 kA (RMS symmetrical) interrupt rating
- Plated copper clip
Specification
| Material | Phenolic |
|---|---|
| Mounting Type | Threaded |
| Number Of Poles | 2 |
| Amperage Rating | 35 to 60 A |
| Dimensions | 4.25 in L x 1.78 in W x 1.38 in H |
| Voltage Rating | 480 V |
| Class | G |
| Color | Black |
| Connection Type | Box Lug With Retaining Clip |
| Suitable For Use With | Class G and SC Fuse |
| Standard & Approvals | ARRA, Buy American Act Compliant, UL 512, File No. E14853, RoHS Compliant |
