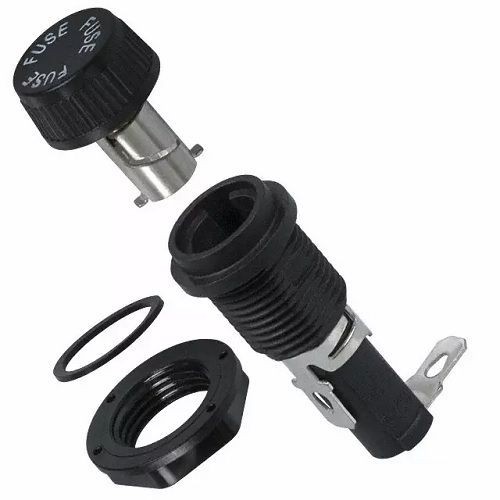

Bussmann® HTB-24I Low Profile Right Angle Fuse Holder, 250 VAC, 20 A
Bussmann® HTB-24I Low Profile Right Angle Fuse Holder, 250 VAC, 20 A
SKU: BUSHTB-24I
Manufacturer Part Number: HTB-24I
UPC: 051712136242
Documents
Features
- High temperature, flame retardant, thermoplastic meets UL 94V0
- Withstands 15 to 20 Lb-In torque to mounting nut when mounting fuse holder to panel
- Rear hex nut
- 20 A UL, 16 A CSA amperage rating
Specification
| Fuse Diameter | 1/4 in |
|---|---|
| Fuse Length | 1-1/4 in |
| Material | Thermoplastic |
| Mounting Type | Panel |
| Amperage Rating | 16/20 A |
| Dimensions | 1.69 in L |
| Voltage Rating | 250 VAC |
| Connection Type | Quick-Connect |
| Standard & Approvals | UL IZLT2, E14853, CSA Class 6225-01, File 47235, VDE 136128, HTB-XXM, SEMKO Ref #0146149/01, HTB-XXM, CE Marked |
| Temperature Rating | -55 to 85 deg C |
