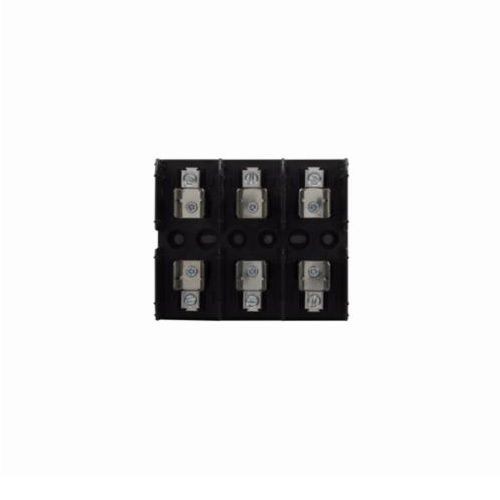

Bussmann® J60030-3CR Fuse Block, 600 VAC/VDC, 0.5 to 30 A, 14 to 2/8 to 2 AWG Wire, 3 Poles
Bussmann® J60030-3CR Fuse Block, 600 VAC/VDC, 0.5 to 30 A, 14 to 2/8 to 2 AWG Wire, 3 Poles
SKU: BUSJ60030-3CR
Manufacturer Part Number: J60030-3CR
UPC: 051712148405
Features
- Fuse blocks are listed with a short circuit current rating of 200 kA (RMS symmetrical) Interrupt rating
- Fuse blocks provide 1, 2 and 3-pole housing for Class J fuses at 600 VAC
- Flammability rating of UL 94V0
Specification
| Material | Thermoplastic |
|---|---|
| Mounting Type | Threaded |
| Number Of Poles | 3 |
| Amperage Rating | 0.5 to 30 A |
| Dimensions | 4.005 in H x 4.702 in W x 2.415 in D |
| Voltage Rating | 600 VAC/VDC |
| Class | J |
| Color | Black |
| Connection Type | Box Lug With Retaining Clip |
| Standard & Approvals | ARRA, Buy American Act Compliant, UL Listed, UL 512, E14853, Guide IZLT, CSA Certified, C22.2 No. 39, Class 6225-01, File 47235, CE Marked, RoHS compliant |
| Suitable For Use With | LPJ, DFJ and JKS Class J Fuse |
