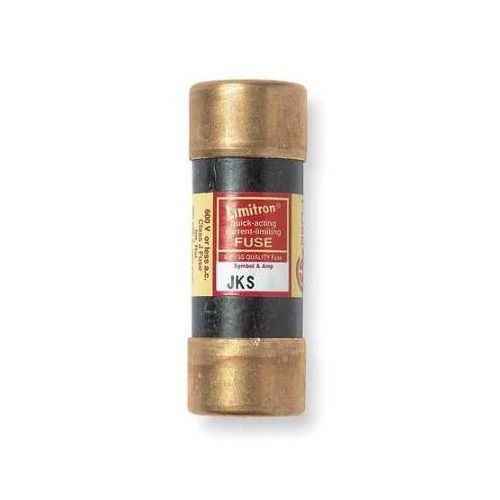

Bussmann® LIMITRON™ JKS-30 Current Limiting Fast Acting Fuse, 30 A, 600 VAC, 200 kA Interrupt, Class J, Cylindrical Body

Selected Bussmann® LIMITRON™ JKS-30 Current Limiting Fast Acting Fuse, 30 A, 600 VAC, 200 kA Interrupt, Class J, Cylindrical Body
Bussmann® LIMITRON™ JKS-30 Current Limiting Fast Acting Fuse, 30 A, 600 VAC, 200 kA Interrupt, Class J, Cylindrical Body

Documents

Short Description

Eaton’s Bussmann® series Limitron fuses provide short circuit protection that is, on average, 10X faster than basic circuit breakers or fuses. These current-limiting UL® and CSA Listed fuses are available in Class CC, J, R, and T - all with a 200kA interrupting rating.

Features

  • Provides component short circuit protection in compliance with NEC 110-10, where protection devices shall clear a fault without extensive damage in to the circuit components
  • High interrupting rating helps meet the requirements of future system expansion and the increases in available utility short circuit current
  • Fuses can be selectively coordinated with ease
  • Current limitation for non-inductive circuits provides Class J current-limiting response to maximum ground fault and short circuit conditions
  • Economical solutions for high fault circuits
  • 200 kA at 600 VAC (RMS symmetrical)

Specification

Interrupt Rating
200 kA
Material
Melamine
Mounting Type
Holder
Amperage Rating
30 A
Voltage Rating
600 V
Application
Power Panelboards and Machinery Disconnects
Body Size
0.81 in Dia x 2.25 in L
Body Style
Cylindrical
Class
J
Element
Single
Standard & Approvals
UL 248-8, CSA C22.2, CE Certified, RoHS Compliant
Terminal Type
Ferrule
