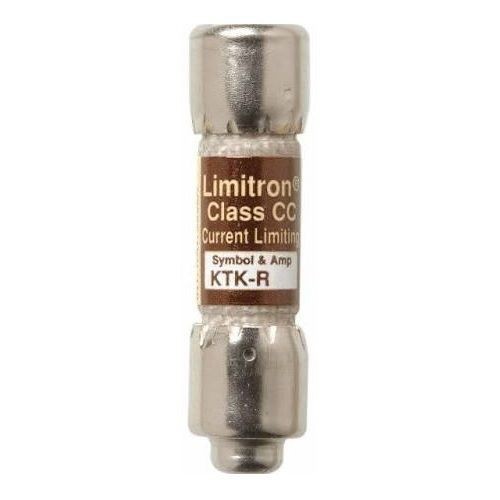

Bussmann® LIMITRON™ KTK-R Fast Acting Fuse, 8 A, 600 VAC, 200 kA Interrupt, Class CC, Cylindrical Body

Selected Bussmann® LIMITRON™ KTK-R Fast Acting Fuse, 8 A, 600 VAC, 200 kA Interrupt, Class CC, Cylindrical Body
Bussmann® LIMITRON™ KTK-R Fast Acting Fuse, 8 A, 600 VAC, 200 kA Interrupt, Class CC, Cylindrical Body

Documents

Short Description

Eaton’s Bussmann® series Limitron fuses provide short circuit protection that is, on average, 10X faster than basic circuit breakers or fuses. These current-limiting UL® and CSA Listed fuses are available in Class CC, J, R, and T - all with a 200kA interrupting rating.

Features

  • Provides 10X better current limitation to help prevent equipment damage caused by short circuit events
  • 200kA VAC (RMS Symmetrical) interrupting rating complies with NEC Section 110.9 for todays large capacity systems
  • Fast-acting fuse helps prevent equipment damage caused by short circuit events
  • Rejection type fuse fits both standard and rejection-style holders
  • Ideal for critical industrial or commercial applications that have specific current limitation requirements
  • Nickel plated bronze end cap
  • Class CC rejection feature, with appropriate fuse block, prevents inserting lesser rated supplementary fuses

Specification

Interrupt Rating
200 kA
Material
Melamine
Mounting Type
Holder
Minimum Order Qty
1
Order Interval
1
Video
https://www.youtube.com/watch?v=YMvqUyoETXk
Body Size
13/32 in Dia x 1-1/2 in L
Body Style
Cylindrical
Catalog ID
BUSKTK-R-8
Class
CC
Element
Single
Voltage Rating
600 V
Application
Branch Circuits, Specialized Circuits, Industrial Control and Street Lighting
Amperage Rating
8 A
Standard & Approvals
UL 248-4, CSA C22.2, CE Certified, RoHS Compliant
Terminal Type
Ferrule
